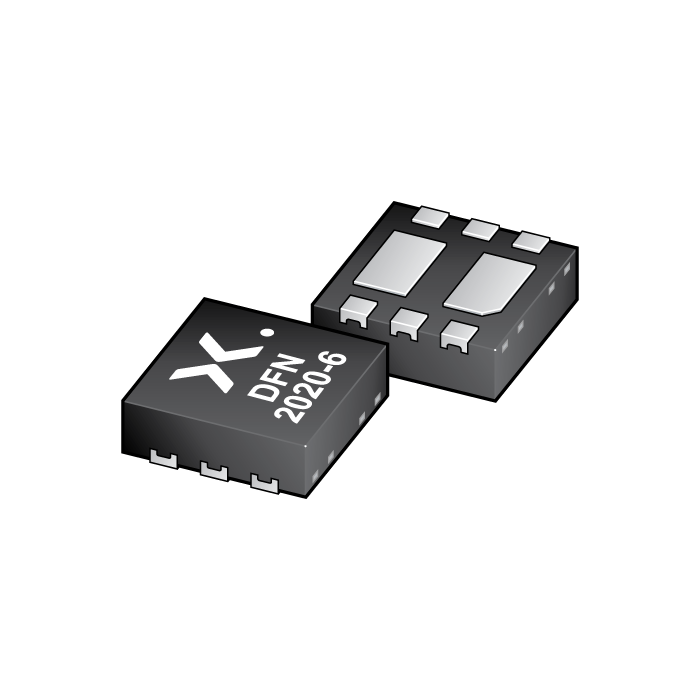

main product photo

图像仅供参考

请参阅产品规格

20 V, dual N

商品编号:
PMDPB30XN,115
简述:
channel Trench MOSFET
描述:
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a small and leadless ultra thin DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
数据手册:
下载数据手册

跳转到图像库的开头

库存: 99765999

数量:

单价: ¥0.9155

总价: ¥0.9155

价格（包含13%的增值税）

数量单价总价: 1 ¥0.9155 ¥0.9155; 500 ¥0.8323 ¥416.1500; 1000 ¥0.7927 ¥792.7000; 3000 ¥0.7549 ¥2,264.7000

特性

Very fast switching
Trench MOSFET technology
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction

目标应用

Relay driver
LED backlight driver
Low-side loadswitch
Switching circuits
