    共 2345件相关商品
    产品
    描述
    价格
    库存
    DC
    数据手册
    操作
    BZX384 series
    BZX384-C15F
    Voltage regulator diodes
    • Total power dissipation: max. 300 mW
    • Two tolerance series: +-2pct and approx. +-5pct
    • Working voltage range: nominal 2.4 to 75 V (E24 range)
    • Non-repetitive peak reverse power dissipation: max. 40 W.
    • AEC-Q101 qualified

    1+:¥0.0966

    500+:¥0.0878

    1000+:¥0.0836

    3000+:¥0.0797

    99986999.9,999
    数据手册
    PMBD914
    PMBD914,235
    High-speed switching diode

    1+:¥0.0923

    500+:¥0.0839

    1000+:¥0.0799

    3000+:¥0.0761

    99,989,999
    数据手册
    PMEG6030EXE
    PMEG6030EXEX
    60 V, 3 A Schottky barrier rectifier

    1+:¥0.3220

    500+:¥0.2927

    1000+:¥0.2788

    3000+:¥0.2655

    0
    数据手册
    PMEG6010EXE
    PMEG6010EXEX
    60 V, 1 A Schottky barrier rectifier

    1+:¥0.2415

    500+:¥0.2195

    1000+:¥0.2091

    3000+:¥0.1991

    0
    数据手册
    PMEG4010EXE
    PMEG4010EXEX
    40 V, 1 A Schottky barrier rectifier

    1+:¥0.2415

    500+:¥0.2195

    1000+:¥0.2091

    3000+:¥0.1991

    0
    数据手册

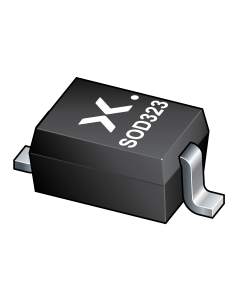

    PZUxBA series
    PZU8.2B2A,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1535

    500+:¥0.1395

    1000+:¥0.1329

    3000+:¥0.1266

    99,990,999
    数据手册
    PZUxBA series
    PZU5.6B2A,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1535

    500+:¥0.1395

    1000+:¥0.1329

    3000+:¥0.1266

    99,999,999
    数据手册
    PZUxBA series
    PZU3.6B2A,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1535

    500+:¥0.1395

    1000+:¥0.1329

    3000+:¥0.1266

    99,690,999
    数据手册
    PZUxBA series
    PZU22B2A,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1266

    3000+:¥0.1266

    99,927,999
    数据手册
    PZUxBA series
    PZU2.4BA,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1449

    500+:¥0.1317

    1000+:¥0.1255

    3000+:¥0.1195

    99,738,999
    数据手册
    PZUxBA series
    PZU12B2A,115
    Single Zener diodes

    • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

    • Low reverse current IR range

    • Total power dissipation: Ptot ≤ 320 mW

    • Small plastic package suitable for surface-mounted design

    • Tolerance series:

      B: approximately +-5 pct;

      B1, B2, B3: approximately +-2 pct

    • AEC-Q101 qualified

    • Wide working voltage range: nominal 2.4 V to 36 V (E24 range)

    1+:¥0.1535

    500+:¥0.1395

    1000+:¥0.1329

    3000+:¥0.1266

    99,999,999
    数据手册
    PMEG6020EPAS
    PMEG6020EPASX
    60 V, 2 A low VF Schottky barrier rectifier

    • Average forward current IF(AV) ≤ 2 A

    • Reverse voltage VR ≤ 60 V

    • Low forward voltage VF ≤ 575 mV

    • Low reverse current

    • Reduced Printed-Circuit-Board (PCB) area requirements

    • Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity

    • Leadless small SMD plastic package with visible and solderable side pads

    • Suitable for Automatic Optical Inspection (AOI) of solder joints

    • AEC-Q101 qualified

    1+:¥0.9756

    500+:¥0.8869

    1000+:¥0.8447

    3000+:¥0.8045

    99,999,999
    数据手册
    PMEG6010CPA
    PMEG6010CPA,115
    1 A low V_F dual MEGA Schottky barrier rectifier

    • Average forward current: IF(AV) ≤ 1 A

    • Reverse voltage: VR ≤ 60 V

    • Low forward voltage

    • Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity

    • Leadless small SMD plastic package with medium power capability

    • AEC-Q101 qualified

    1+:¥0.8597

    500+:¥0.7816

    1000+:¥0.7443

    3000+:¥0.7089

    99,978,999
    数据手册
    PMEG6010CEGW
    PMEG6010CEGWX
    60 V, 1 A Low VF Schottky barrier rectifier

    • Forward current: IF ≤ 1 A

    • Reverse voltage VR ≤ 60 V

    • Low forward voltage, typ. VF = 570 mV

    • Low reverse current, typ. IR = 11 µA

    • Small SMD plastic package

    1+:¥0.2640

    500+:¥0.2400

    1000+:¥0.2286

    3000+:¥0.2177

    99,879,999
    数据手册
    PMEG4020EPK
    PMEG4020EPK,315
    40 V, 2 A low VF Schottky barrier rectifier

    • Average forward current: IF(AV) ≤ 2 A

    • Reverse voltage: VR ≤ 40 V

    • Low forward voltage VF ≤ 660 mV

    • Low reverse current

    • Solderable side pads

    • Package height typ. 0.37 mm

    • Ultra small and leadless SMD plastic package

    1+:¥0.5227

    500+:¥0.4752

    1000+:¥0.4526

    3000+:¥0.4310

    8000+:¥0.4310

    97,356,999
    数据手册
    PMEG2015EPK
    PMEG4015EPK,315
    40 V, 1.5 A low VF Schottky barrier rectifier

    • Average forward current: IF(AV) ≤ 1.5 A

    • Reverse voltage: VR ≤ 40 V

    • Low forward voltage VF ≤ 610 mV

    • Low reverse current

    • Solderable side pads

    • Package height typ. 0.37 mm

    • Ultra small and leadless SMD plastic package

    • AEC-Q101 qualified

    1+:¥0.3724

    500+:¥0.3386

    1000+:¥0.3225

    3000+:¥0.3071

    99,623,999
    数据手册
    PMEG4010ET
    PMEG4010ET,215
    40 V, 1 A very low VF Schottky barrier rectifier

    • Forward current: IF ≤ 1 A

    • Reverse voltage: VR ≤ 40 V

    • Very low forward voltage

    1+:¥0.3220

    500+:¥0.2927

    1000+:¥0.2788

    3000+:¥0.2655

    99,885,999
    数据手册
    PMEG4010EGW
    PMEG4010EGWX
    40 V, 1 A low VF MEGA Schottky barrier rectifier

    • Forward current: IF ≤ 1 A

    • Reverse voltage: VR ≤ 40 V

    • Low forward voltage typ. VF = 540 mV

    • Low reverse current typ. IR = 30 µA

    • Small SMD plastic package

    1+:¥0.1310

    3000+:¥0.1310

    99,333,999
    数据手册
    PMEG4010CPAS
    PMEG4010CPASX
    40 V, 1 A low VF dual Schottky barrier rectifier

    • Average forward current IF(AV) ≤ 1 A

    • Reverse voltage VR ≤ 40 V

    • Low forward voltage VF ≤ 500 mV

    • Low reverse current

    • Reduced Printed-Circuit-Board (PCB) area requirements

    • Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity

    • Leadless small SMD plastic package with visible and solderable side pads

    • Suitable for Automatic Optical Inspection (AOI) of solder joints

    • AEC-Q101 qualified

    1+:¥0.9048

    500+:¥0.8225

    1000+:¥0.7834

    3000+:¥0.7461

    99,990,999
    数据手册
    PMEG4010CPA
    PMEG4010CPA,115
    1 A low V_F dual MEGA Schottky barrier rectifier

    • Average forward current: IF(AV) ≤ 1 A

    • Reverse voltage: VR ≤ 40 V

    • Low forward voltage

    • Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity

    • Leadless small SMD plastic package with medium power capability

    • AEC-Q101 qualified

    1+:¥0.8597

    500+:¥0.7816

    1000+:¥0.7443

    3000+:¥0.7089

    99,999,999
    数据手册
