BAT74

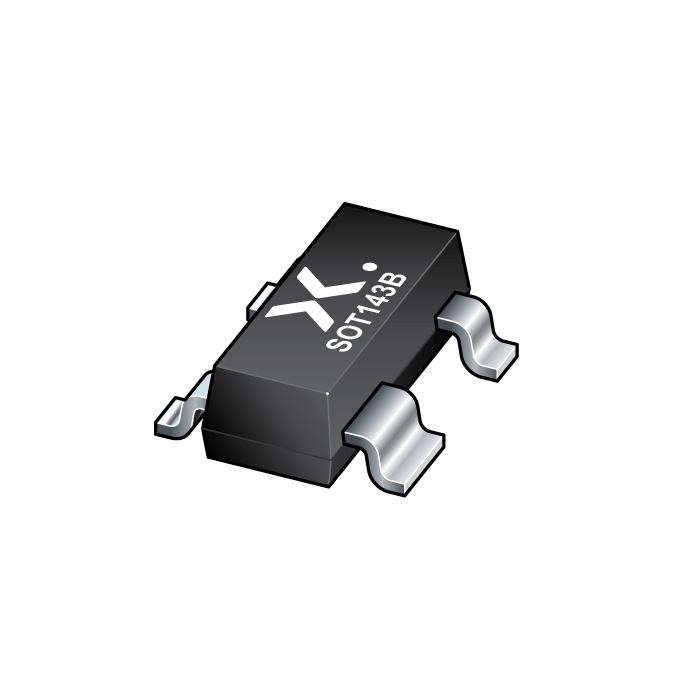

main product photo

图像仅供参考

请参阅产品规格

BAT74
  • 商品编号:
    BAT74,215
  • 简述:
    Schottky barrier double diode
  • 描述:

    Planar Schottky barrier double diode with an integrated guard ring for stress protection. Two electrically isolated Schottky barrier diodes, encapsulated in a small SOT143B Surface-Mounted Device (SMD) plastic package.

  • 数据手册:
    下载数据手册
库存: 0
数量:
单价: ¥0.3553
总价: ¥0.3553
价格（包含13%的增值税）
数量 单价 总价
1 ¥0.3553 ¥0.3553
500 ¥0.323 ¥161.5000
1000 ¥0.3076 ¥307.6000
3000 ¥0.2929 ¥878.7000

特性

  • Low forward voltage

  • Guard-ring protected

  • Small SMD plastic package

  • AEC-Q101 qualified

目标应用

  • Ultra high-speed switching

  • Voltage clamping

  • Protection circuits

  • Blocking diodes

数据手册
下载数据手册
