PNE20080EPE

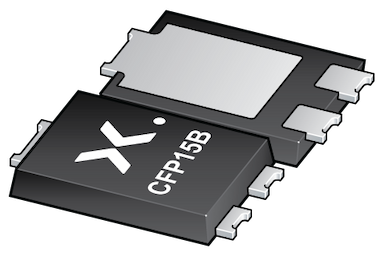

图像仅供参考
请参阅产品规格
PNE20080EPE
-
商品编号:
PNE20080EPEZ
-
批次:
2352+
-
简述:
200 V, 8 A hyperfast recovery rectifier
-
描述:
High power density, hyperfast switching time recovery rectifier with high-efficiency planar technology, encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 99999999
特性
Reverse voltage: VR ≤ 200 V
Forward current: IF ≤ 8 A
Switching time: trr ≤ 30 ns
Pt doped life time control
Low inductance
Power and flat lead SMD plastic package
Package height typical 0.95 mm
High power capability due to clip-bond technology
Planar die design
目标应用
General-purpose rectification
Reverse polarity protection
Hyperfast switching
Freewheeling applications
Engine Control Unit (ECU)
数据手册
