SZMM3Z18VT1G

SZMM3Z18VT1G

图像仅供参考

请参阅产品规格

SZMM3Z18VT1G

商品编号:
SZMM3Z18VT1G-QX
简述:
Q - Voltage regulator diodes
描述:

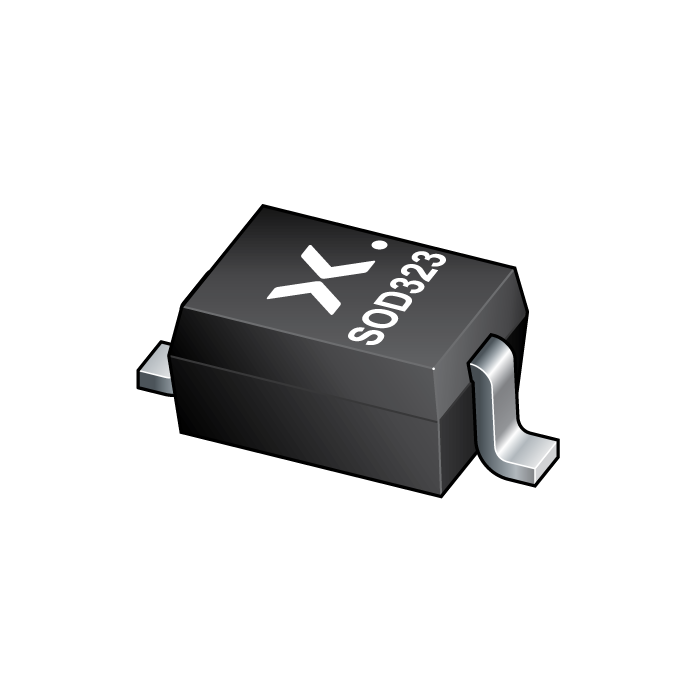

General-purpose Zener diode in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package.
数据手册:
下载数据手册

库存: 99948999

数量:

单价: ¥0.1825

总价: ¥0.1825

价格（包含13%的增值税）

数量单价总价: 1 ¥0.1825 ¥0.1825; 500 ¥0.1659 ¥82.9500; 1000 ¥0.158 ¥158.0000; 3000 ¥0.1505 ¥451.5000

Table 1. Quick reference data
Symbol	Parameter	Conditions		Min	Typ	Max	Unit
V_F	forward voltage	I_F = 100 mA	¹	-	-	1.1	V
P_ZSM	non-repetitive peak reverse power dissipation		²	-	-	40	W

¹ Pulse test: t _p ≤ 300 μs; δ ≤ 0.02

² t _p = 100 µs; square wave; T _j = 25 °C before surge
