库存: 10000
数量:
单价: ¥0.0223
总价: ¥0.0223
价格(包含13%的增值税)
数量 单价 总价
1 ¥0.0223 ¥0.0223
500 ¥0.0203 ¥10.1500
1000 ¥0.0193 ¥19.3000
3000 ¥0.0184 ¥55.2000

特性

  • Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W

  • Low reverse current IR range

  • Total power dissipation: Ptot ≤ 250 mW

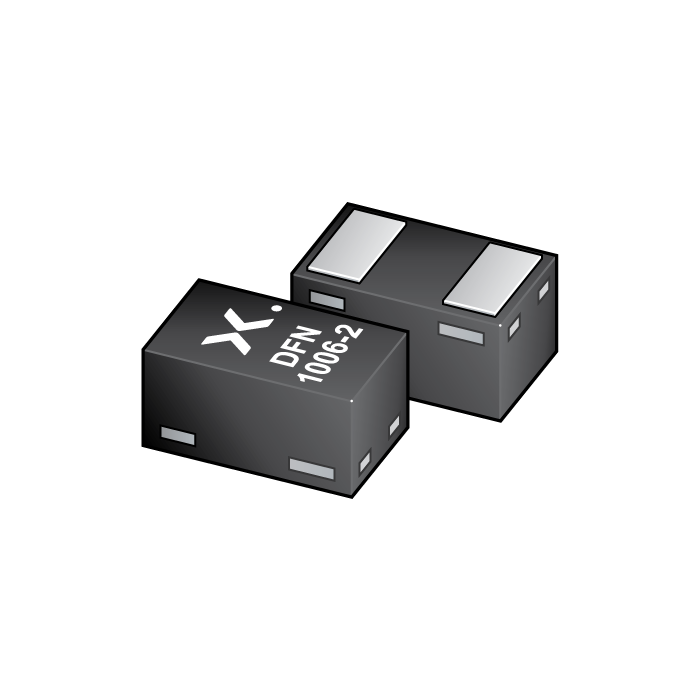

  • Small plastic package suitable for surface-mounted design

  • Tolerance series:

    B: approximately +-5 pct;

    B2: approximately +-2 pct

  • AEC-Q101 qualified

  • Wide working voltage range:

    nominal 2.4 V to 36 V (E24 range)

目标应用

  • General regulation functions
