PXN7R0-30QLAJ

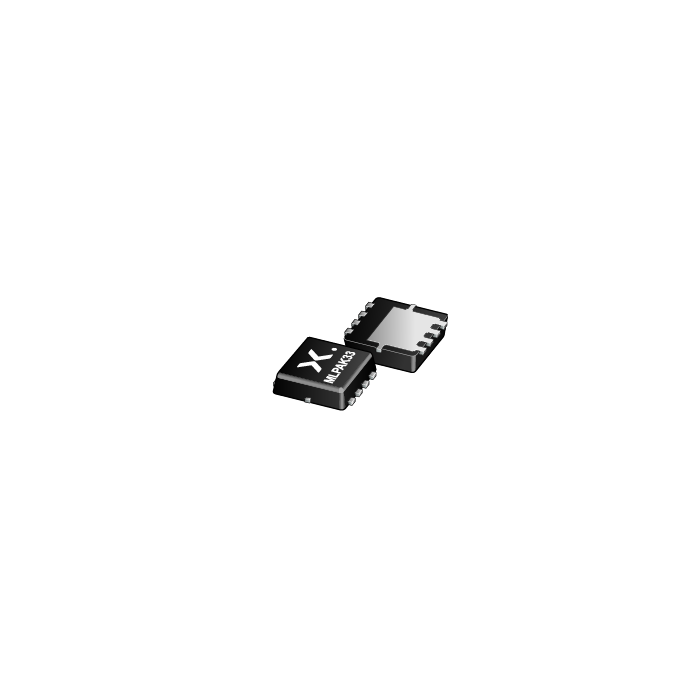

图像仅供参考
请参阅产品规格
PXN7R0-30QLAJ
-
商品编号:
PXN7R0-30QLAJ
-
简述:
N-channel 30 V, 7.0 mOhm, logic level Trench MOSFET in MLPAK33
-
描述:
General purpose MOSFET for standard applications, 55 A, logic level N-channel enhancement mode Power MOSFET in MLPAK33 package.
- 数据手册:
库存: 3000
特性
- Logic level compatibility
- Trench MOSFET technology
- Thermally efficient package in a small form factor (3.3 mm x 3.3 mm footprint)
目标应用
- Secondary side synchronous rectification
- DC-to-DC converters
- Home appliance
- Motor drive
- Load switching
