PUSB3AB2DF
图像仅供参考
请参阅产品规格
PUSB3AB2DF
-
商品编号:
PUSB3AB2DFZ
-
简述:
Extremely low clamping low capacitance ESD protection
-
描述:

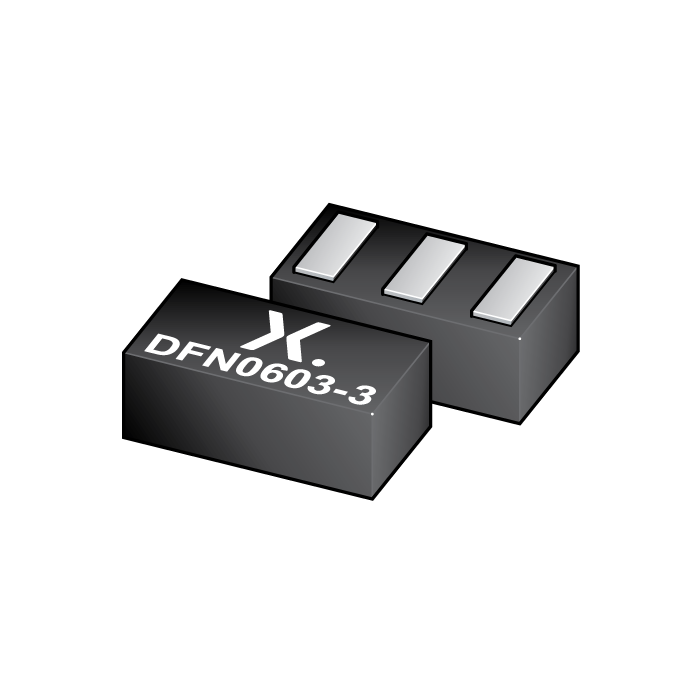

Symmetrical bidirectional ElectroStatic Discharge (ESD) protection diode array, part of the TrEOS protection family. This device is housed in a DFN0603-3 (SOT8013) leadless ultra small Surface-Mounted Device (SMD) package designed to protect two signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
Bidirectional ESD protection of two lines
Very low diode capacitance Cd = 0.26 pF
Extremely low clamping to protect sensitive I/Os
Extremely low-inductance protection path to ground
ESD protection up to ±20 kV according to IEC 61000-4-2
Ultra small SMD package
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
数据手册
