PTVS5V0Z1USKP
图像仅供参考
请参阅产品规格
PTVS5V0Z1USKP
-
商品编号:
PTVS5V0Z1USKPYL
-
简述:
Transient voltage suppressor in DSN1608-2 for mobile applications
-
描述:

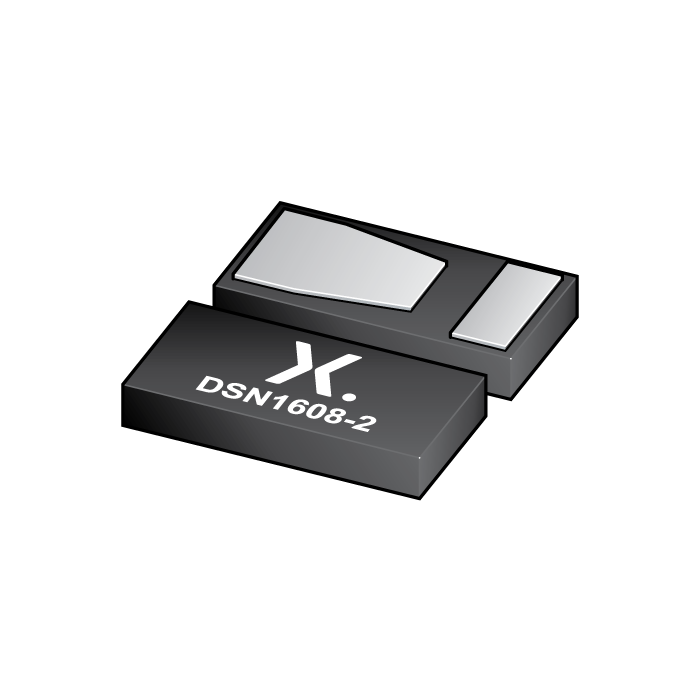

Unidirectional Transient Voltage Suppressor (TVS) in an ultra small leadless DSN1608-2 (SOD964) package, designed for transient overvoltage protection.
- 数据手册:
库存: 99999999
特性
Average measured peak pulse current: IPPM = 112.5 A (8/20 μs pulse)
Rated peak pulse current: IPPM = 100 A (8/20 μs pulse)
Rated peak pulse power: PPPM = 260 W (10/1000 µs pulse)
Dynamic resistance Rdyn = 0.08 Ω
Very low package height: 0.29 mm
目标应用
Power supply protection
Power management
Industrial application
数据手册
