PTVS3V3Z1BSC
图像仅供参考
请参阅产品规格
PTVS3V3Z1BSC
-
商品编号:
PTVS3V3Z1BSCYL
-
简述:
Ultra compact transient voltage suppressor
-
描述:

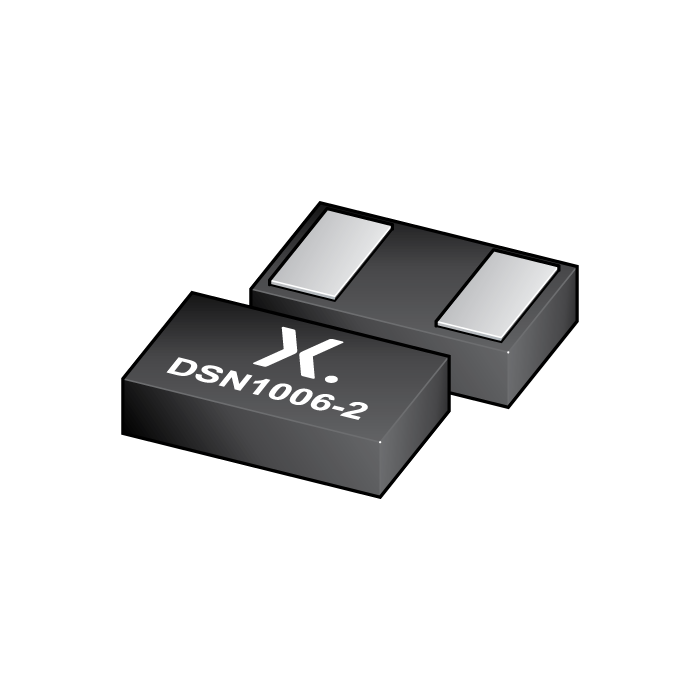

Transient voltage suppressor in an ultra small and leadless DSN1006-2 (SOD993B) Surface-Mounted Device (SMD) package designed to protect one line against high surge currents and other transients.
- 数据手册:
库存: 99999999
特性
Bidirectional ESD protection of one line
Very high surge robustness; IPPM = 82 A (measured) for 8/20 μs pulse
Very low clamping voltage: VCL = 11 V typ. for 70 A at 8/20μs pulse
ESD protection up to 30 kV
目标应用
Surge protection for
supply and battery lines
audio interfaces
in portable communication, consumer and computing devices.
