PTVS10VU1UPA
图像仅供参考
请参阅产品规格
PTVS10VU1UPA
-
商品编号:
PTVS10VU1UPAZ
-
简述:
300 W Transient Voltage Suppressor
-
描述:

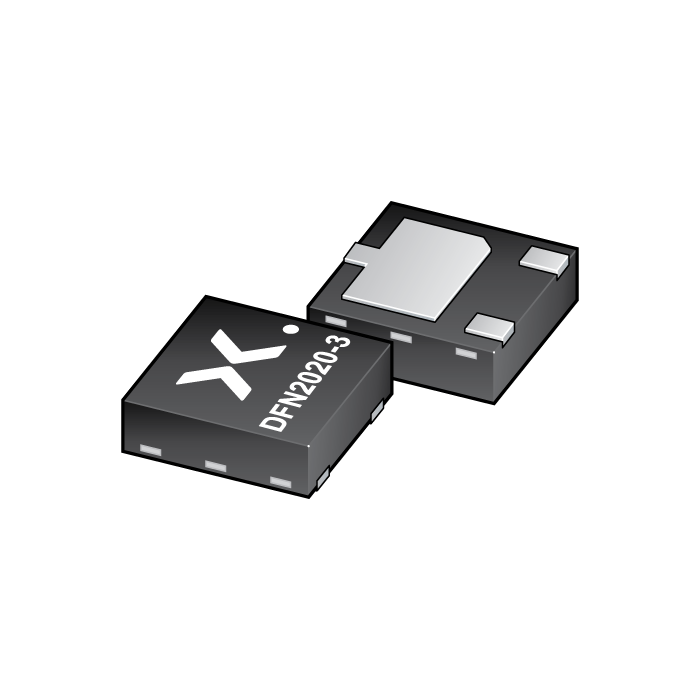

300 W unidirectional Transient Voltage Suppressor (TVS) in a DFN2020-3 (SOT1061) leadless medium power Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
- 数据手册:
库存: 99996999
特性
Unidirectional protection of one line
Reverse standoff voltage: VRWM = 10 V
Surge robustness: IPPM = 148 A (8/20 µs) / IPPM = 17.6 A (10/1000 µs)
Reverse current: IRM = 2 nA
Very low package height: 0.65 mm
AEC-Q101 qualified
目标应用
Power supply protection
Industrial application
Power management
数据手册
