PSMNR56
图像仅供参考
请参阅产品规格
PSMNR56
-
商品编号:
PSMNR56-25YLEX
-
简述:
25YLE - N-channel 25 V, 0.63 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56E
-
描述:
N-channel enhancement mode ASFET for hotswap with enhanced SOA in LFPAK56E package optimized for low RDSon and strong safe operating area, optimized for hot-swap, inrush and linear-mode applications.
- 数据手册:
库存: 99999999
特性
Fully optimized Safe Operating Area (SOA) for superior linear mode operation
Optimized for low RDSon / low I2R conduction losses

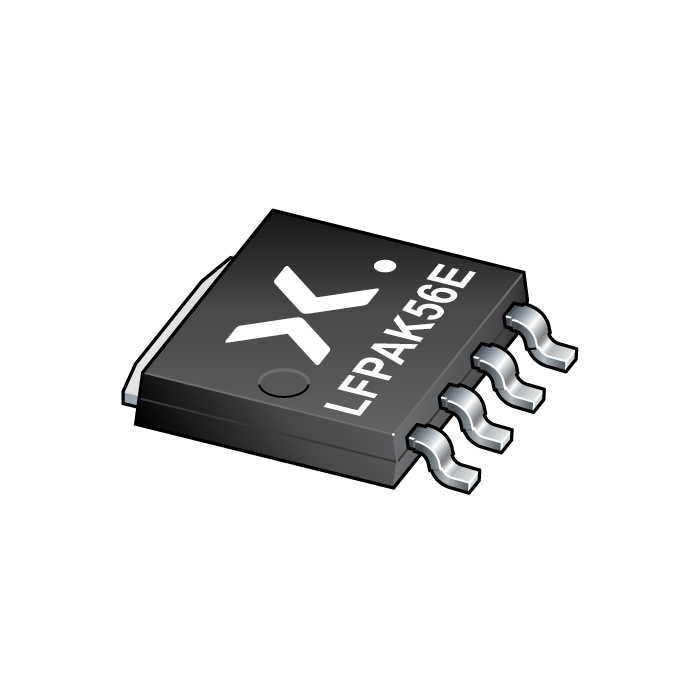

LFPAK56E package for applications that demand the highest performance and reliability in a 30 mm2 footprint
Low leakage <1 µA at 25 °C
Copper-clip for low parasitic inductance and resistance
High reliability LFPAK package, qualified to 175 °C
目标应用
Hot swap in 12 V - 20 V applications
e-Fuse
DC switch
Load switch
Battery protection
