图像仅供参考
请参阅产品规格
-
商品编号:
PSMN4R8-100YSEX
-
简述:

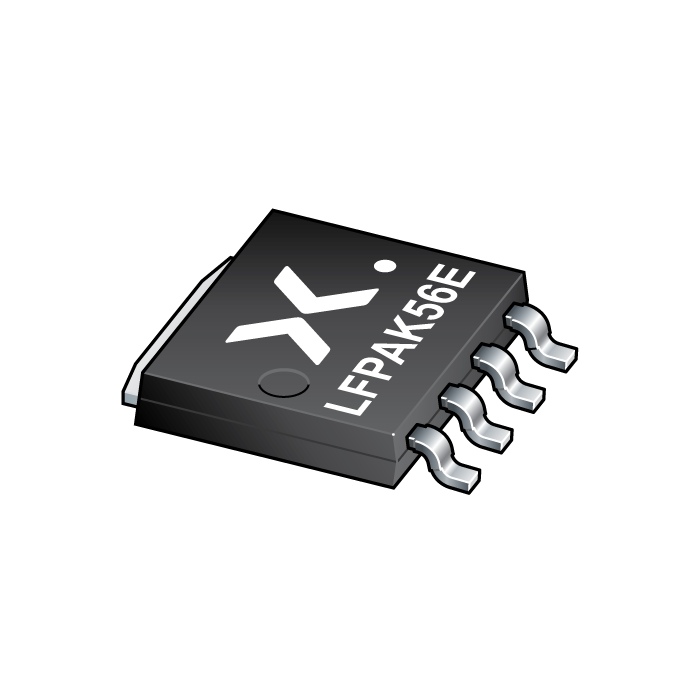

100YSE - N-channel 100 V, 4.8 mOhm MOSFET with enhanced SOA in LFPAK56E
-
描述:
N-channel enhancement mode MOSFET in a LFPAK56E package qualified to 175 °C. Part of Nexperia's "ASFETs for hotswap" portfolio, the PSMN4R8-100YSE delivers very low RDSon and a very strong linear-mode (SOA) performance in a high-reliability copper-clip LFPAK56E package. PSMN4R8-100YSE complements the latest "hot-swap" controllers ‒ robust enough to withstand substantial inrush currents during turn-on, low RDSon to minimize I2R losses delivering optimum efficiency when turned fully ON and an 80% smaller footprint than existing D2PAK types.
- 数据手册:
特性
Fully optimized Safe Operating Area (SOA) for superior linear mode operation
Low RDSon for low I2R conduction losses
LFPAK56E package for applications that demand the highest performance and reliability in a 30 mm2 footprint
目标应用
Hot swap
Load switch
Soft start
E-fuse
Telecommunication systems based on a 48 V backplane/supply rail
