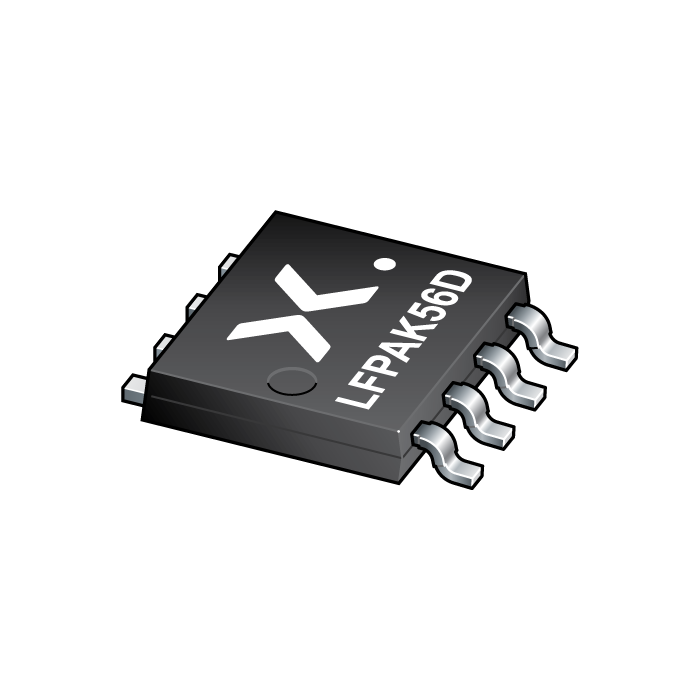

图像仅供参考
请参阅产品规格
-
商品编号:
PSMN4R2-40VSHX
-
简述:
40VSH - Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration)
-
描述:
Dual, standard level N-channel MOSFET in an LFPAK56D package (half-bridge configuration), using NextpowerS3 technology.
An internal connection is made between the source (S1) of the high-side FET to the drain (D2) of the low-side FET, making the device ideal to use as a half-bridge switch in high-performance PWM and space constrained motor drive applications
- 数据手册:
特性
- LFPAK56D package with half-bridge configuration enables:
Reduced PCB layout complexity
Module shrinkage through reduced component count
Improved system level Rth(j-amb) due to optimized package design
Lower parasitic inductance to support higher efficiency
Footprint compatibility with LFPAK56D Dual package
NextpowerS3 technology
Low power losses, high power density
Superior avalanche performance
Repetitive avalanche rated
LFPAK copper clip packaging provides high robustness and reliability
Gull wing leads support high manufacturability and Automated Optical Inspection (AOI)
目标应用
Handheld power tools, portable appliance and space constrained applications
Brushless or brushed DC motor drive
DC-to-DC systems
LED lighting
