PSMN3R7
图像仅供参考
请参阅产品规格
PSMN3R7
-
商品编号:
PSMN3R7-100BSEJ
-
简述:

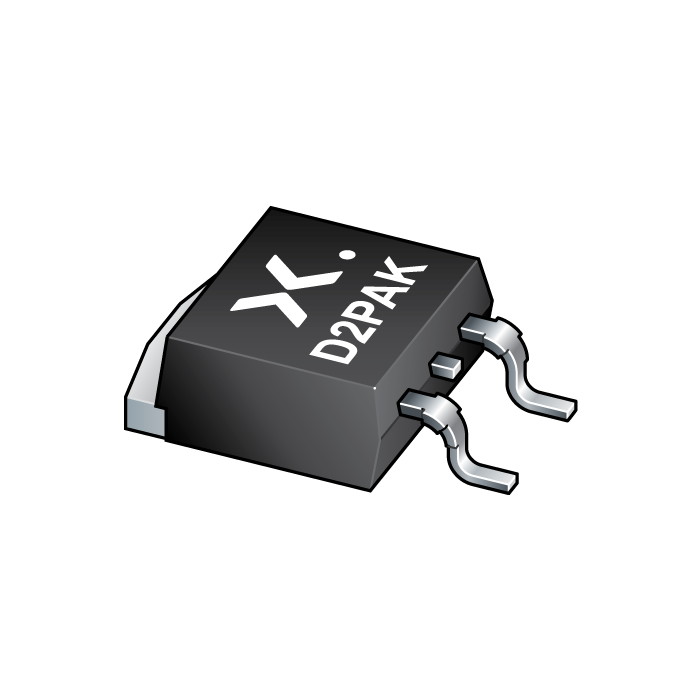

100BSE - N-channel 100 V, 3.95 mΩ, standard level MOSFET in D2PAK
-
描述:
Standard level gate drive N-channel enhancement mode MOSFET in a D2PAK package qualified to 175 °C. Part of Nexperia's "NextPower Live" portfolio, the PSMN3R7-100BSE delivers very low RDSon and a very strong linear-mode (SOA) performance.
PSMN3R7-100BSE complements the latest "hot-swap" controllers - robust enough to withstand substantial inrush currents during turn on, low RDSon to minimize I2R losses and deliver optimum efficiency when turned fully ON.
- 数据手册:
库存: 99999999
特性
Fully optimized Safe Operating Area (SOA) for superior linear mode operation
Low RDSon for low I2R conduction losses
目标应用
Hot swap
Load switch
Soft start
E-fuse
- Telecommunication systems based on a 48 V backplane/supply rail
数据手册
