PSMN2R8
图像仅供参考
请参阅产品规格
PSMN2R8
-
商品编号:
PSMN2R8-80SSFJ
-
简述:

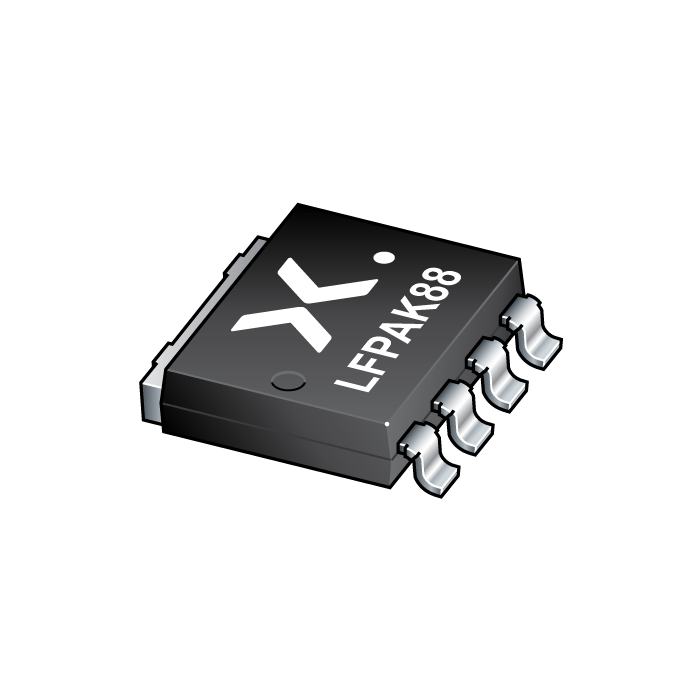

80SSF - NextPower 80 V, 2.8 mOhm, 205 Amp, N-channel MOSFET in LFPAK88 package
-
描述:
NextPower 80 V, standard level gate drive MOSFET. Qualified to 175 °C and recommended for industrial and consumer applications.
- 数据手册:
库存: 99999999
特性
Low QRR for higher efficiency and lower spiking
190 Amp ID(max) continuous current rating
Low QG × RDSon FOM for high efficiency switching applications
Strong avalanche energy rating (Eas)
Avalanche rated and 100% tested
Ha-free and RoHS compliant LFPAK88 package
目标应用
Synchronous rectifier in AC-to-DC and DC-to-DC
Primary side switch in DC-to-DC
BLDC motor control
Full-bridge and half-bridge applications
Battery protection
数据手册
