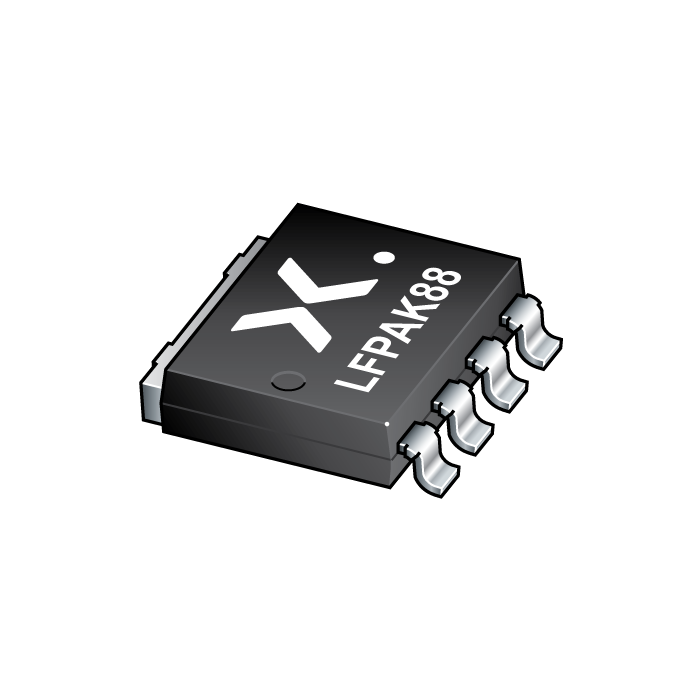

图像仅供参考
请参阅产品规格
-
商品编号:
PSMN2R5-80SSEJ
-
简述:
80SSE - N-channel 80 V, 2.5 mOhm MOSFET with enhanced SOA in LFPAK88
-
描述:
N-channel enhancement mode MOSFET in a LFPAK88 package qualified to 175 °C. Part of Nexperia's Application Specific MOSFETs (ASFETs) for Hotswap and Soft Start. The PSMN2R8-80SSE delivers very low RDSon and enhanced safe operating area performance in a high-reliability copper-clip LFPAK88 package.
PSMN2R8-80SSE complements the latest "hot-swap" controllers – robust enough to withstand substantial inrush currents during turn-on, low RDSon to minimize I2R losses and deliver optimum efficiency when turned fully ON.
- 数据手册:
特性
Fully optimized Safe Operating Area (SOA) for superior linear mode operation
Low RDSon for low I2R conduction losses
LFPAK88 package for applications that demand the highest performance and reliability
目标应用
Hot swap
Load switch
Soft start
E-fuse
Telecommunication systems based on a 48 V backplane/supply rail
