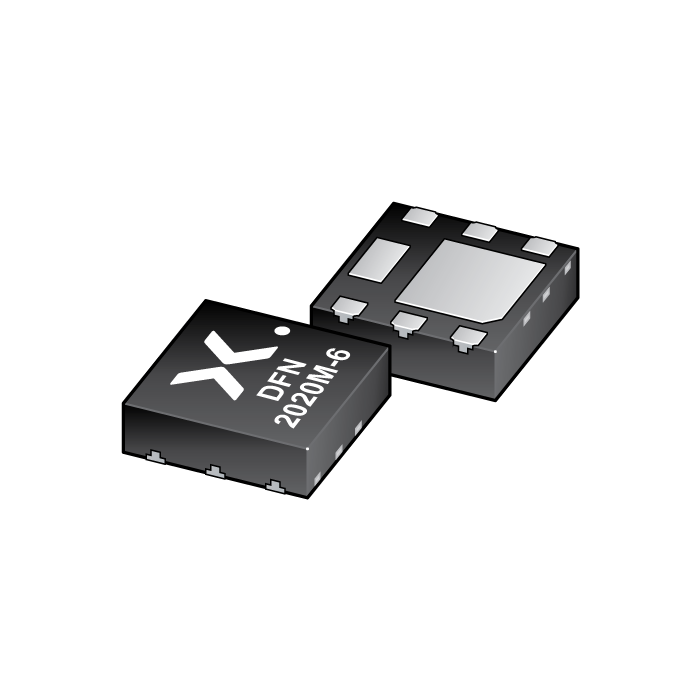

图像仅供参考
请参阅产品规格
-
商品编号:
PSMN047-100NSEX
-
简述:
100NSE - N-channel 100 V, 53 mOhm standard level ASFET with enhanced SOA in DFN2020. Designed for high power PoE, inrush management, eFuse and relay replacement
-
描述:
New standards and proprietary approaches are enabling Power-over-Ethernet (PoE) systems capable of delivering up to 90 W to each powered device (PD). Such solutions place increased demands on the power sourcing equipment (PSE) in terms of “soft-start”, thermal management and power density requirements. These ASFETs combine enhanced SOA in a compact 2 mm x 2 mm footprint making them ideally placed for a variety of applications including PoE, eFuse and relay replacement.
- 数据手册:
特性
Enhanced safe operating area (SOA) for superior linear mode operation
Low RDSon for low I2R conduction losses
2 mm x 2 mm space-saving DFN2020 package, 60% smaller than LFPAK33
Very low IDSS leakage
目标应用
High power PoE applications (60 W and higher)
IEEE802.3at and proprietary PoE solutions
Fault tolerant load switch - Inrush management and eFuse applications
Battery management applications
Relay replacement
WIFI hotspots
5G picocells
CCTV
