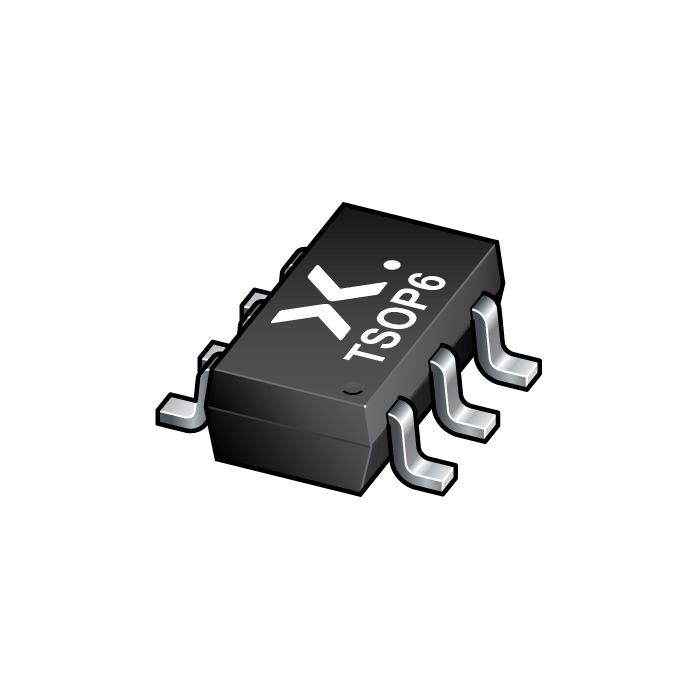

图像仅供参考
请参阅产品规格
-
商品编号:
PRTR5V0U4D,125
-
批次:
2504+
-
简述:
Ultra low capacitance quadruple rail-to-rail ESD protection
-
描述:
Ultra low capacitance quadruple rail-to-rail ElectroStatic Discharge (ESD) protection device in an SOT457 (SC-74) small Surface-Mounted Device (SMD) plastic package.
The device is designed to protect four high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.
PRTR5V0U4D integrates four ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- 数据手册:
特性
ESD protection of four high-speed data lines or high-frequency signal lines
Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF
ESD protection up to 8 kV
IEC 61000-4-2, level 4 (ESD)
Very low clamping voltage due to an integrated additional ESD protection diode
Very low reverse current
Small SMD plastic package
目标应用
USB 2.0 interfaces
Digital Video Interface (DVI)
High-Definition Multimedia Interface (HDMI)
Mobile phones
Digital cameras
WAN/LAN systems
PC, notebooks, printers and other PC peripherals
