商品编号:
PRTR5V0U2AX,235
-
简述:
Ultra low capacitance double rail-to-rail ESD protection diode
-
描述:

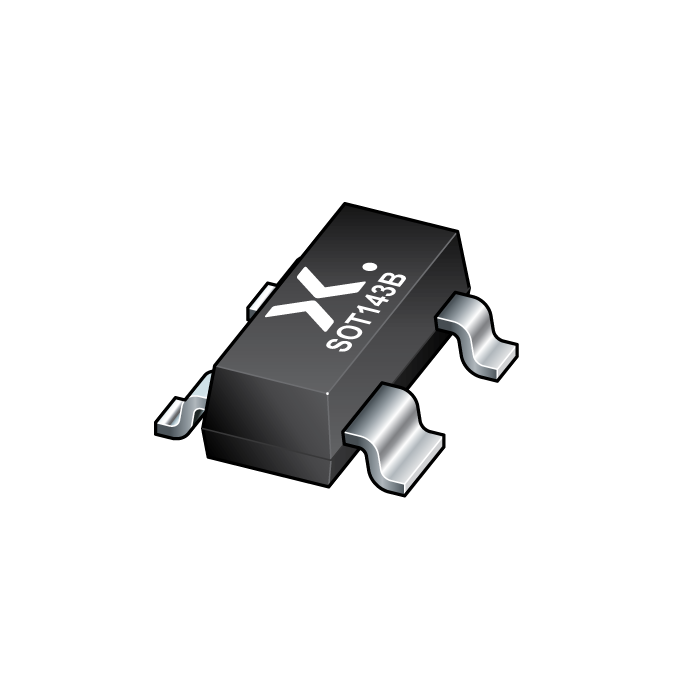

Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface-Mounted Device (SMD) plastic package.
The device is designed to protect two high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.
PRTR5V0U2AX integrates two ultra low capacitance rail-to-rail diodes and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- 数据手册:
特性
ESD protection of two high-speed data lines or high frequency signal lines
Ultra low input/output to ground capacitance: C(I/O-GND) = 1.8 pF
ESD protection up to 12 kV
IEC 61000-4-2, level 4 (ESD)
Very low clamping voltage due to an integrated additional ESD protection diode
Very low reverse current
Small SMD plastic package
目标应用
USB 2.0 ports
Digital Video Interface (DVI)
High-Definition Multimedia Interface (HDMI)
Mobile phones
Digital cameras
WAN/LAN systems
PCs, notebooks, printers and other PC peripherals
