PMX100UN

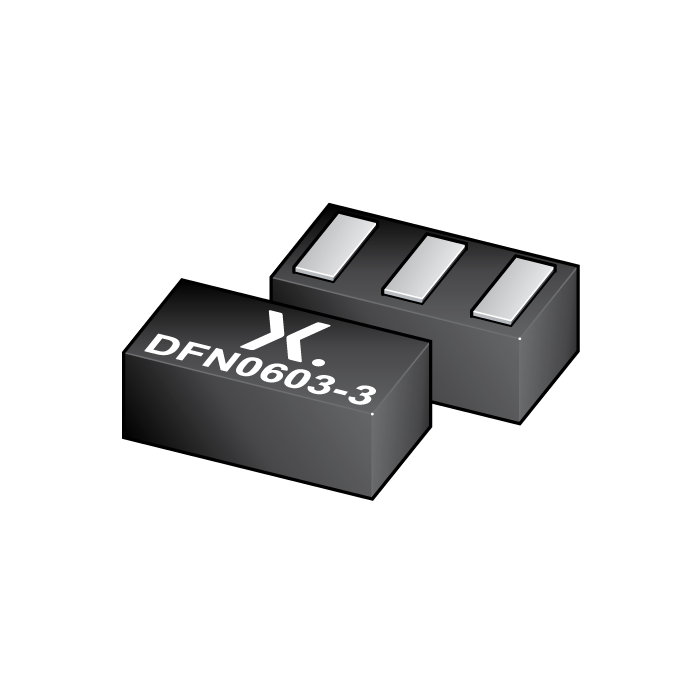

main product photo

图像仅供参考

请参阅产品规格

PMX100UN

商品编号:
PMX100UNZ
简述:
20 V, N-channel Trench MOSFET
描述:
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN0603-3 (SOT8013) Surface-Mounted Device (SMD) using Trench MOSFET technology.
数据手册:
下载数据手册

跳转到图像库的开头

库存: 99999999

数量:

单价: ¥0.5592

总价: ¥0.5592

价格（包含13%的增值税）

数量单价总价: 1 ¥0.5592 ¥0.5592; 500 ¥0.5084 ¥254.2000; 1000 ¥0.4841 ¥484.1000; 3000 ¥0.4611 ¥1,383.3000

特性

Low threshold voltage
Leadless ultra small package; 0.63 x 0.33 x 0.25 mm
Trench MOSFET technology
Low profile (0.25 mm)

目标应用

Battery switch
High-speed line driver
Low-side load switch
Switching circuits

数据手册

下载数据手册
