PMPB8XN

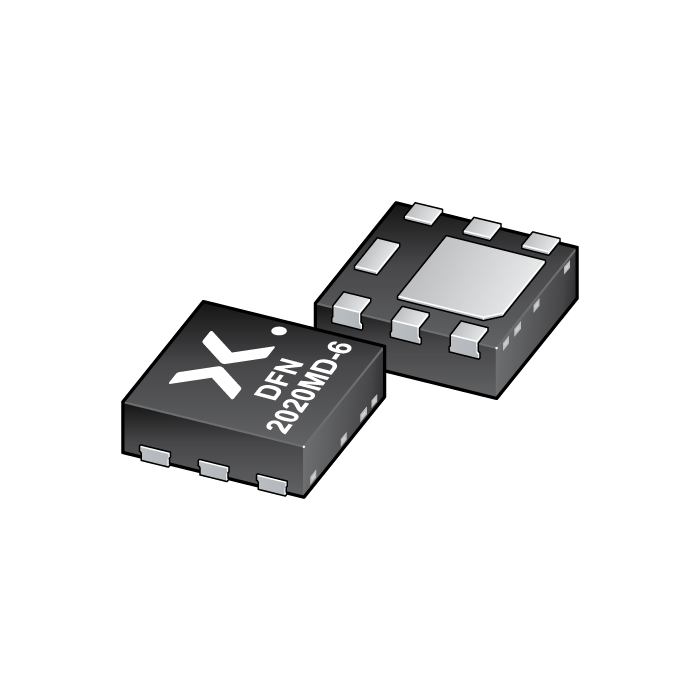

main product photo

图像仅供参考

请参阅产品规格

PMPB8XN
  • 商品编号:
    PMPB8XNX
  • 简述:
    20 V, N-channel Trench MOSFET
  • 描述:

    N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • 数据手册:
    下载数据手册
库存: 99939999
数量:
单价: ¥1.5
总价: ¥1.5

特性

  • Very fast switching

  • Low threshold voltage

  • Trench MOSFET technology

  • Side wettable flanks for optical solder inspection

  • Exposed drain pad for excellent thermal conduction

目标应用

  • Relay driver

  • High-speed line driver

  • Low-side load switch

  • Switching circuits

数据手册
下载数据手册
