30 V, single P
图像仅供参考
请参阅产品规格
30 V, single P
-
商品编号:
PMPB48EP,115
-
简述:
channel Trench MOSFET
-
描述:

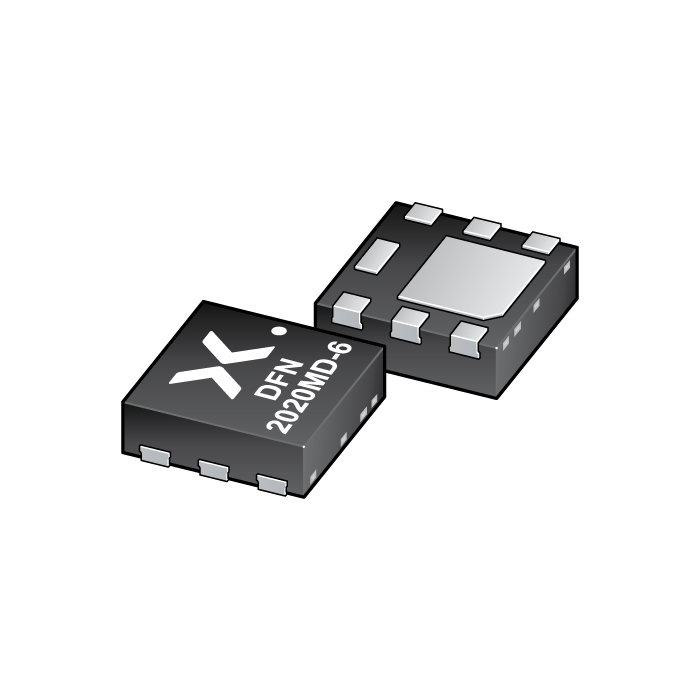

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
- 数据手册:
库存: 99921999
特性
Trench MOSFET technology
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction
Tin-plated 100 % solderable side pads for optical solder inspection
目标应用
Charging switch for portable devices
DC-to-DC converters
Power management in battery-driven portable devices
Hard disk and computing power management
数据手册
