PMPB33XN

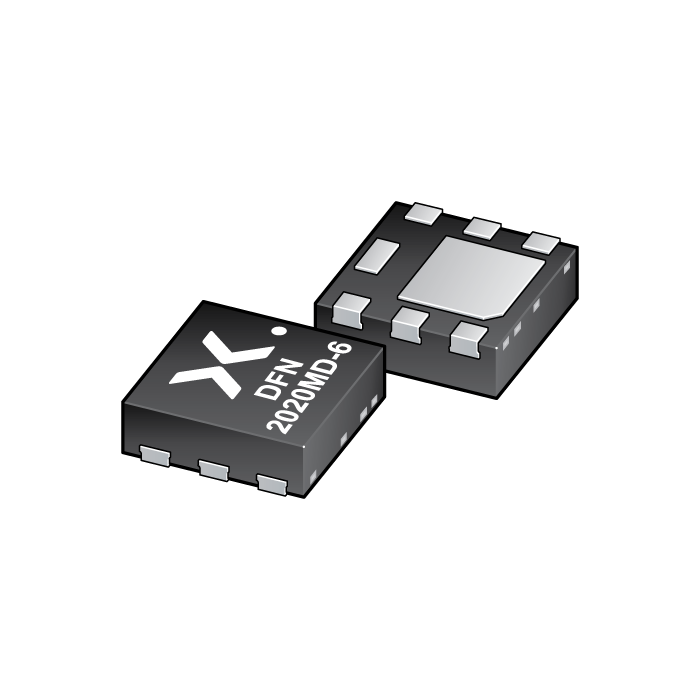

main product photo

图像仅供参考

请参阅产品规格

PMPB33XN

商品编号:
PMPB33XN,115
简述:
30 V single N-channel Trench MOSFET
描述:
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
数据手册:
下载数据手册

跳转到图像库的开头

库存: 99966999

数量:

单价: ¥0.6998

总价: ¥0.6998

价格（包含13%的增值税）

数量单价总价: 1 ¥0.6998 ¥0.6998; 500 ¥0.6362 ¥318.1000; 1000 ¥0.6059 ¥605.9000; 3000 ¥0.577 ¥1,731.0000

特性

Trench MOSFET technology
Very fast switching
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction
Tin-plated 100 % solderable side pads for optical solder inspection

目标应用

Charging switch for portable devices
DC-to-DC converters
Power management in battery-driven portables
Hard disk and computing power management

数据手册

下载数据手册
