PMPB14XP

JavaScript 似乎在您的浏览器中被禁用。 为了您在我们网站能获得最好的体验，建议在浏览器中打开Javascript。

跳到结尾的图片库

PMPB14XP

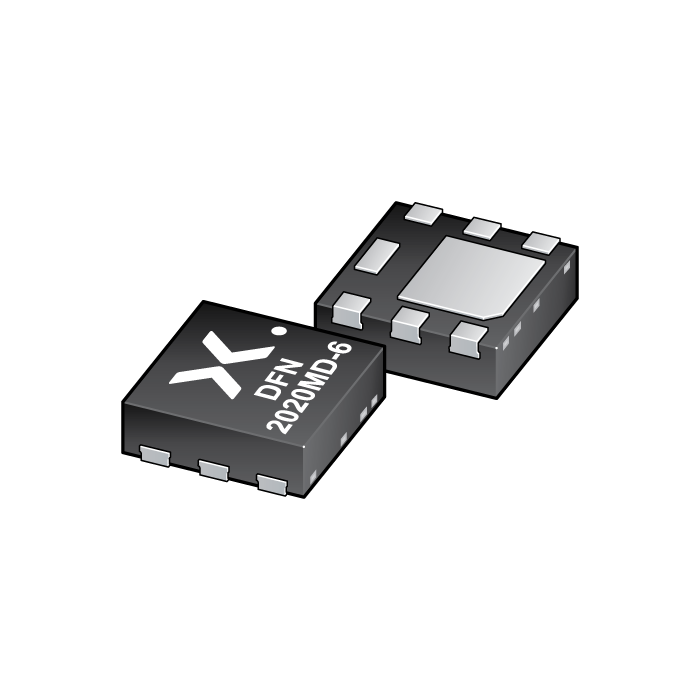

main product photo

图像仅供参考

请参阅产品规格

PMPB14XP

商品编号:
PMPB14XPZ
简述:
12 V, P-channel Trench MOSFET
描述:
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
数据手册:
下载数据手册

跳转到图像库的开头

库存: 0

数量:

单价: ¥0.3227

总价: ¥0.3227

价格（包含13%的增值税）

数量单价总价: 1 ¥0.3227 ¥0.3227; 500 ¥0.2934 ¥146.7000; 1000 ¥0.2794 ¥279.4000; 3000 ¥0.2661 ¥798.3000

特性

Low threshold voltage
Trench MOSFET technology
Side wettable flanks for optical solder inspection
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction

目标应用

Charging switch for portable devices
DC-to-DC converters
Power management in battery-driven portable devices
Hard disk and computing power management

数据手册

下载数据手册
