PMP5501QAS

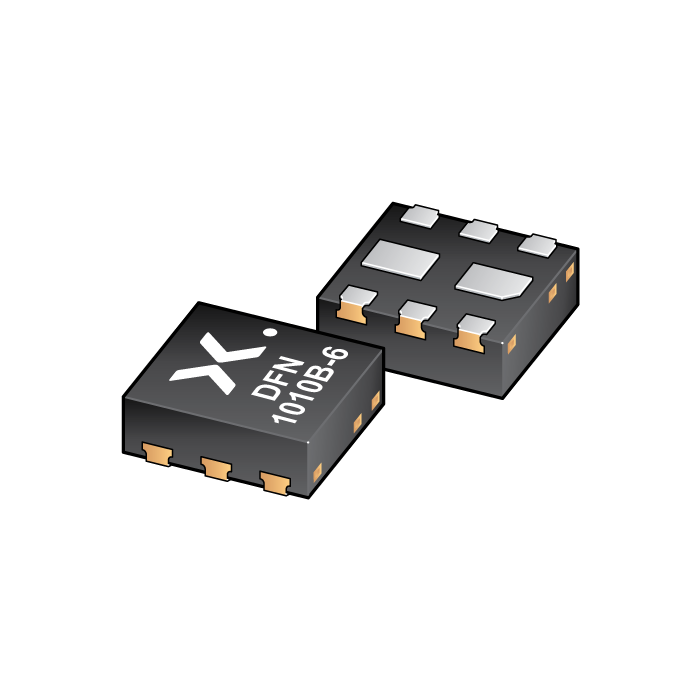

main product photo

图像仅供参考

请参阅产品规格

PMP5501QAS
  • 商品编号:
    PMP5501QASZ
  • 简述:
    45 V, 100 mA PNP/PNP matched double transistors
  • 描述:

    PNP/PNP matched double transistors in an ultra small DFN1010B-6 (SOT1216) leadless Surface-Mounted Device (SMD) plastic package.

    NPN/NPN complement: PMP4501QAS

  • 数据手册:
    下载数据手册
库存: 0
数量:
单价: ¥0.7696
总价: ¥0.7696
价格（包含13%的增值税）
数量 单价 总价
1 ¥0.7696 ¥0.7696
500 ¥0.6996 ¥349.8000
1000 ¥0.6663 ¥666.3000
3000 ¥0.6346 ¥1,903.8000

特性

  • Reduces component count

  • Reduces pick and place costs

  • Low package height of 0.37 mm

  • Current gain matching

  • Base-emitter voltage matching

  • Application-optimized pinout

  • AEC-Q101 qualified

目标应用

  • Current mirror

  • Differential amplifier

数据手册
下载数据手册
