PMEG6010AESB
图像仅供参考
请参阅产品规格
PMEG6010AESB
-
商品编号:
PMEG6010AESBYL
-
批次:
2349+
-
简述:
60 V, 1 A low VF MEGA Schottky barrier rectifier
-
描述:

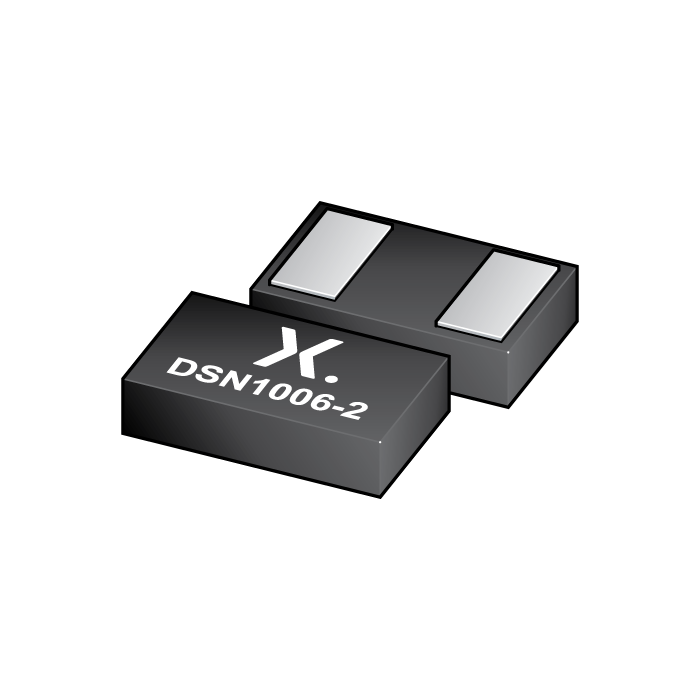

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection in a leadless ultra small DSN1006-2 (SOD993) Surface-Mounted Device (SMD) package.
- 数据手册:
库存: 99949999
特性
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 60 V
Low forward voltage, typical: VF = 525 mV
Low reverse current, typical: IR = 185 µA
Package height typ. 270 µm
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Low power consumption applications
Ultra high-speed switching
LED backlight for mobile application
