PMEG2015EPK
图像仅供参考
请参阅产品规格
PMEG2015EPK
-
商品编号:
PMEG4015EPK,315
-
简述:
40 V, 1.5 A low VF Schottky barrier rectifier
-
描述:

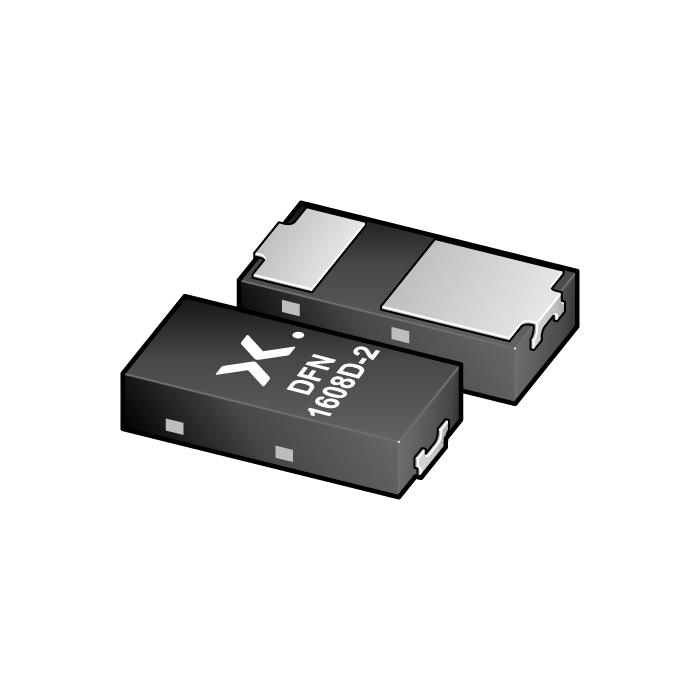

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
库存: 99999999
特性
Average forward current: IF(AV) ≤ 1.5 A
Reverse voltage: VR ≤ 40 V
Low forward voltage VF ≤ 610 mV
Low reverse current
Solderable side pads
Package height typ. 0.37 mm
Ultra small and leadless SMD plastic package
AEC-Q101 qualified
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
LED backlight for mobile application
Low power consumption applications
Ultra high-speed switching
Reverse polarity protection
