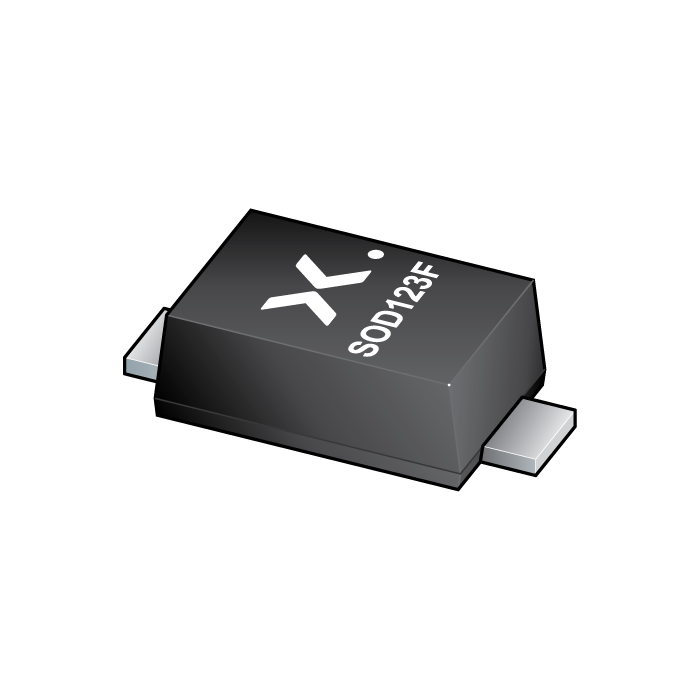

PMEG4010CEH
图像仅供参考
请参阅产品规格
PMEG4010CEH
-
商品编号:
PMEG4010CEH-QX
-
简述:
Q - 40 V, 1 A very low VF Schottky barrier rectifier
-
描述:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 99999999
特性
Forward current: IF ≤ 1 A
Reverse voltage: VR ≤ 40 V
Very low forward voltage
Small and flat lead SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
数据手册
