PMEG3020CPAS
图像仅供参考
请参阅产品规格
PMEG3020CPAS
-
商品编号:
PMEG3020CPASX
-
简述:
30 V, 2 A low VF dual Schottky barrier rectifier
-
描述:

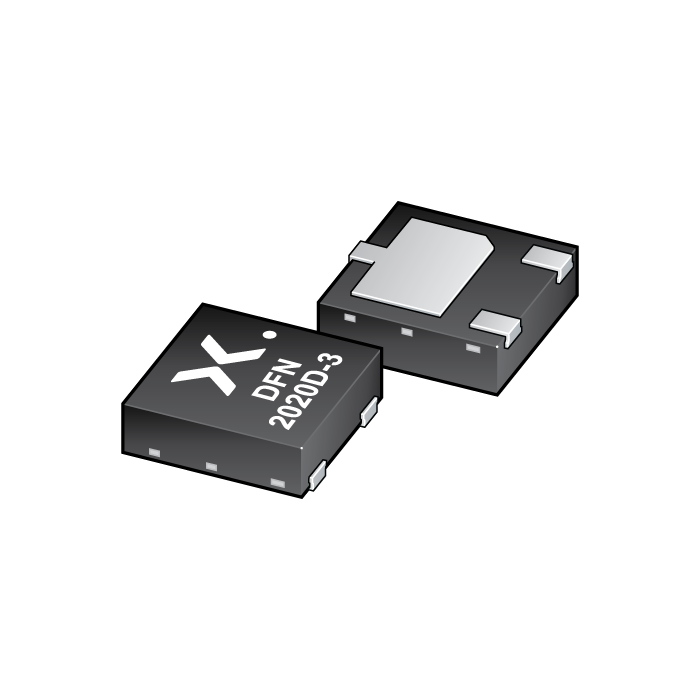

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier in common cathode configuration with an integrated guard ring for stress protection, encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
库存: 0
特性
Average forward current IF(AV) ≤ 2 A
Reverse voltage VR ≤ 30 V
Low forward voltage VF ≤ 440 mV
Low reverse current
Reduced Printed-Circuit-Board (PCB) area requirements
Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity
Leadless small SMD plastic package with visible and solderable side pads
Suitable for Automatic Optical Inspection (AOI) of solder joints
AEC-Q101 qualified
目标应用
数据手册
