PMEG3010AESA
图像仅供参考
请参阅产品规格
PMEG3010AESA
-
商品编号:
PMEG3010AESAYL
-
简述:
30 V, 1 A low VF MEGA Schottky barrier rectifier
-
描述:

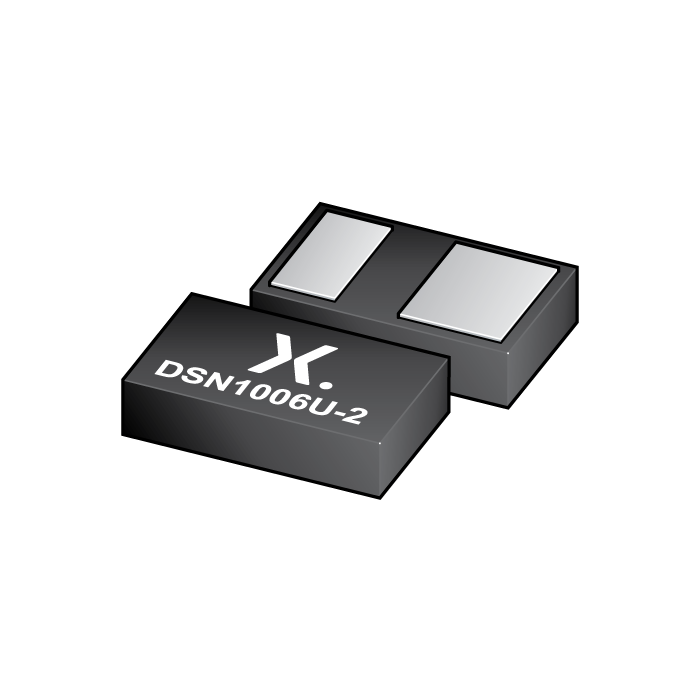

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection in a leadless ultra small DSN1006U-2 (SOD995) Surface-Mounted Device (SMD) package.
- 数据手册:
库存: 0
特性
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 30 V
Low forward voltage, typical: VF = 415 mV
Low reverse current, typical: IR = 300 µA
Package height typ. 270 µm
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Low power consumption applications
Ultra high-speed switching
LED backlight for mobile application
