商品编号:
PMEG2010BELD-QYL
-
简述:
Q - 20 V, 1 A low VF MEGA Schottky barrier rectifier
-
描述:

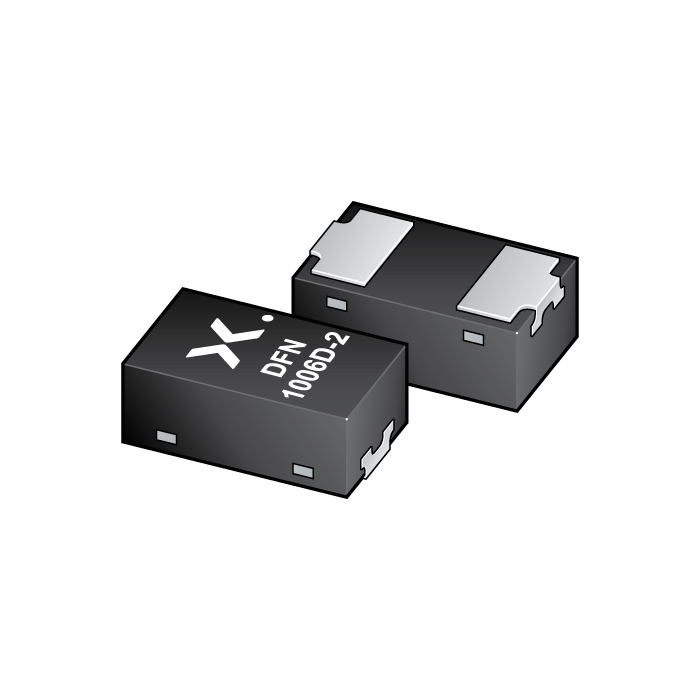

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
特性
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 20 V
Low forward voltage VF ≤ 490 mV
Qualified according to AEC-Q101 and recommended for use in automotive applications
Ultra small and leadless SMD plastic package
Solderable side pads
Package height typ. 0.37 mm
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Ultra high-speed switching
LED backlight for mobile application
