PMEG1030EH

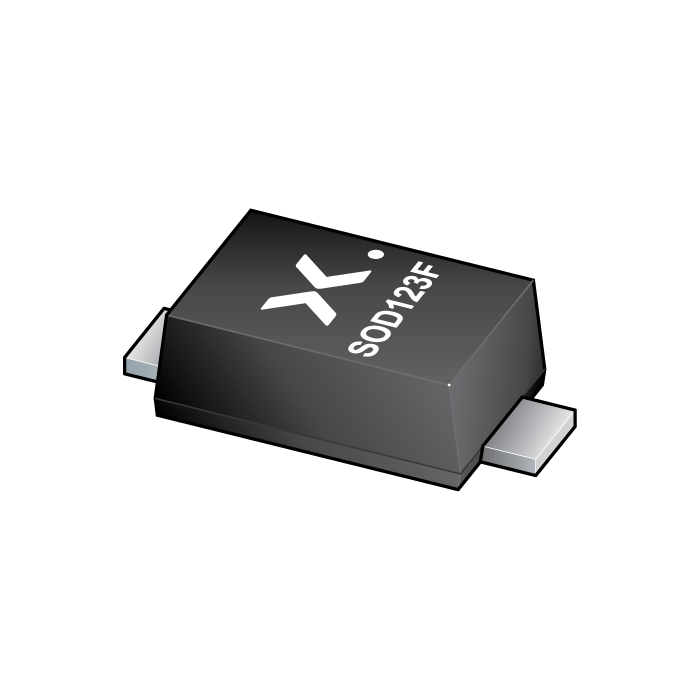

图像仅供参考
请参阅产品规格
PMEG1030EH
-
商品编号:
PMEG1030EH-QX
-
简述:
Q - 10 V, 3 A ultra low VF Schottky barrier rectifier
-
描述:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD123F Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
Forward current: 3 A
Reverse voltage: 10 V
Ultra low forward voltage
Small and flat lead SMD package
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switched-mode power supply
Reverse polarity protection
Low power consumption applications
数据手册
