PMEG100V100ELPD
图像仅供参考
请参阅产品规格
PMEG100V100ELPD
-
商品编号:
PMEG100V100ELPDZ
-
简述:
100 V, 10 A low leakage current Schottky barrier rectifier
-
描述:

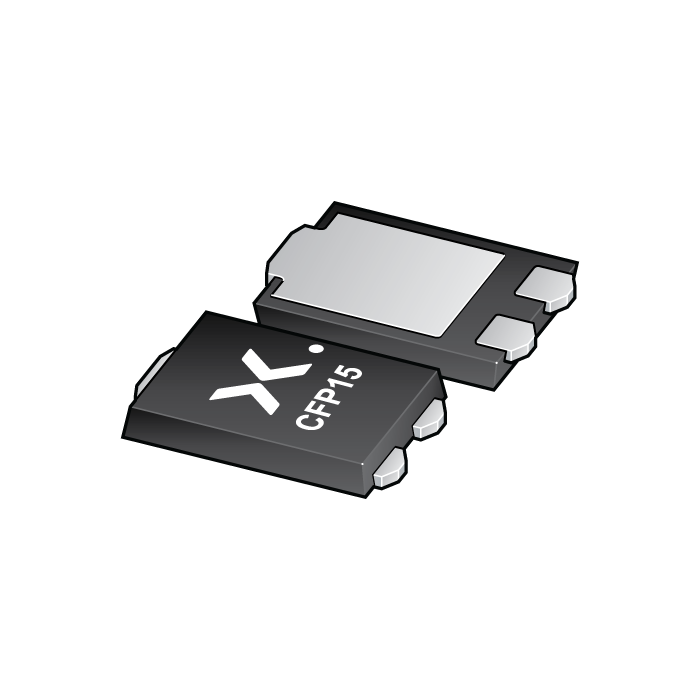

Maximum Efficiency General Application (MEGA) Schottky barrier rectifier, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
Average forward current: IF(AV) ≤ 10 A
Reverse voltage: VR ≤ 100 V
Low leakage current due to high Schottky barrier technology
Low forward voltage
High power capability due to clip-bonding technology and heat sink
High temperature Tj ≤ 175 °C
Small and thin SMD power plastic package, typical height 0.78 mm
AEC-Q101 qualified
目标应用
Low voltage rectification
Automotive LED lighting
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption application
数据手册
