PMEG045T030EPD
图像仅供参考
请参阅产品规格
PMEG045T030EPD
-
商品编号:
PMEG045T030EPDZ
-
简述:
45 V, 3 A low VF Trench MEGA Schottky barrier rectifier
-
描述:

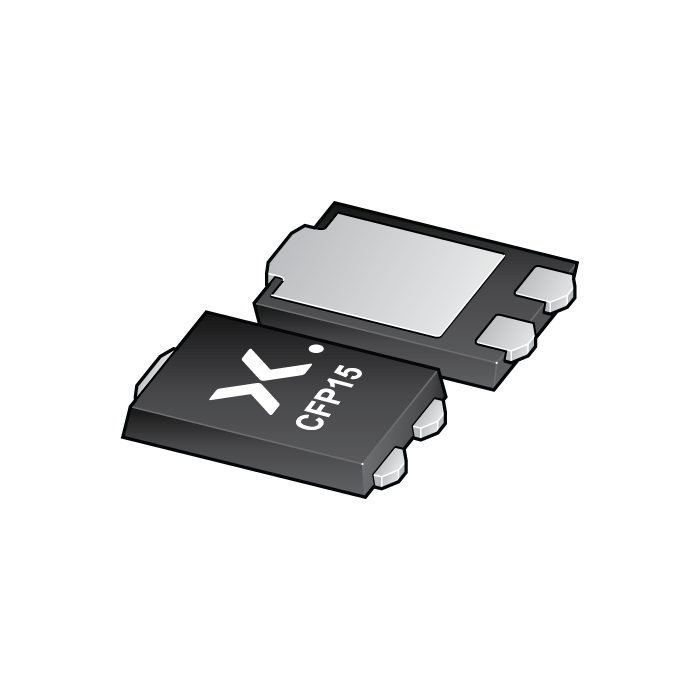

Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
Average forward current: IF(AV) ≤ 3 A
Reverse voltage: VR ≤ 45 V
Low forward voltage
Low leakage current due to Trench MEGA Schottky technology
High power capability due to clip-bonding technology and heat sink
Small and thin SMD power plastic package, typical height 0.78 mm
AEC-Q101 qualified
目标应用
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Freewheeling application
Reverse polarity protection
Low power consumption application
数据手册
