PIMN31PA

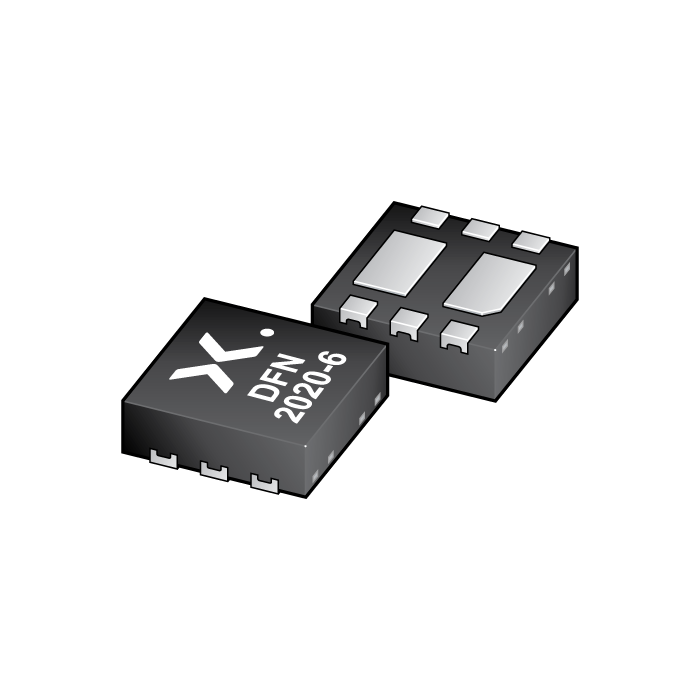

main product photo

图像仅供参考

请参阅产品规格

PIMN31PA

商品编号:
PIMN31PAX
简述:
50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 1 kΩ, R2 = 10 kΩ
描述:
NPN/NPN Resistor-Equipped double Transistor (RET) in a medium power SOT1118 (DFN2020-6) leadless Surface-Mounted Device (SMD) plastic package.
NPN/PNP complement: PIMC31PA
PNP/PNP complement: PIMP31PA
数据手册:
下载数据手册

跳转到图像库的开头

库存: 99999999

数量:

单价: ¥0.7406

总价: ¥0.7406

价格（包含13%的增值税）

数量单价总价: 1 ¥0.7406 ¥0.7406; 500 ¥0.6733 ¥336.6500; 1000 ¥0.6412 ¥641.2000; 3000 ¥0.6107 ¥1,832.1000

特性

500 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs

目标应用

Digital applications
Cost-saving alternative to BC817 series in digital applications
Control of IC inputs
Switching loads

数据手册

下载数据手册
