vp_PESD8V0S1UL
图像仅供参考
请参阅产品规格
vp_PESD8V0S1UL
-
商品编号:
PESD8V0S1ULYL
-
简述:
Unidirectional ESD protection diode
-
描述:

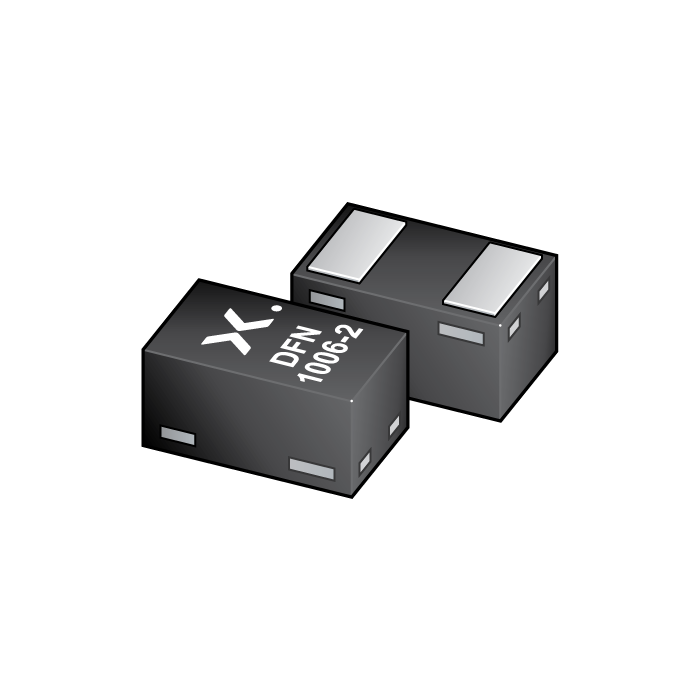

Unidirectional ElectroStatic Discharge (ESD) protection diode, designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a leadless ultra small DFN1006-2 (SOD882) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存: 0
特性
ESD protection of one line
Ultra small SMD plastic package
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 8.5 A
Ultra low leakage current: IRM typ. 5 nA
AEC-Q101 qualified
目标应用
ESD and surge protection for interface lines
数据手册
