PESD8V0S1ULD

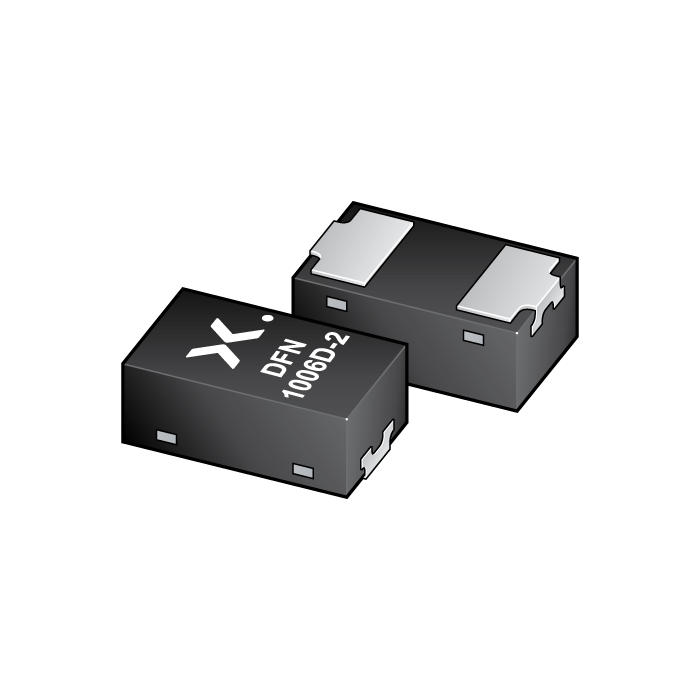

图像仅供参考
请参阅产品规格
PESD8V0S1ULD
-
商品编号:
PESD8V0S1ULD-QYL
-
批次:
2349+
-
简述:
Q - Unidirectional ESD protection diode
-
描述:
Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
库存: 0
特性
Unidirectional ESD protection of one line
Very high surge robustness; IPP = 16 A for 8/20 s pulse; averaged measured
ESD protection up to 30 kV
Ultra small plastic package 1.0 x 0.6 x 0.37 mm
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
ESD and surge protection for interface lines
