PESD7V0L1BSL
图像仅供参考
请参阅产品规格
PESD7V0L1BSL
-
商品编号:
PESD7V0L1BSLAZ
-
批次:
2523+
-
简述:
ESD protection device
-
描述:

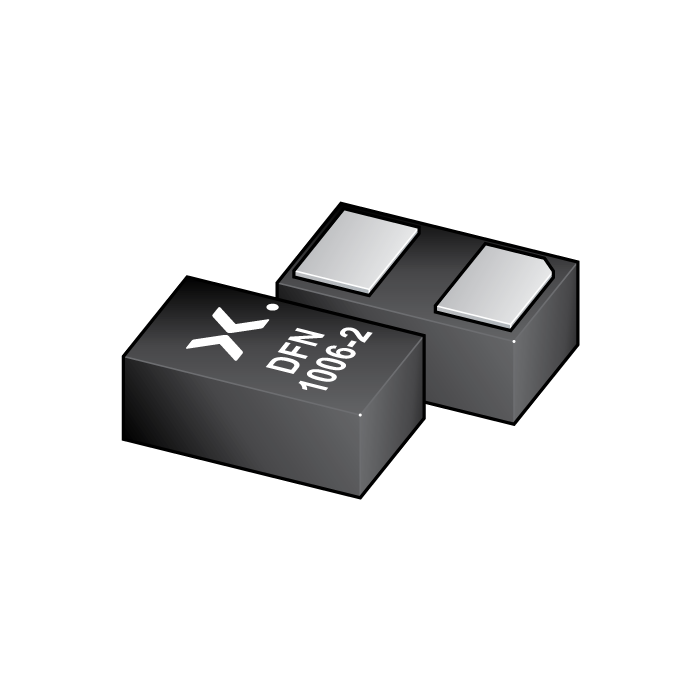

Bidirectional ElectroStatic Discharge (ESD) protection diode in a DFN1006-2 (SOD882-S1) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
Bidirectional protection of one line
Reverse stand-off voltage: VRWM = 7 V
Surge robustness: IPPM = 7 A for 8/20 μs pulse
Ultra low clamping voltage: VCL = 9.6 V typ. at IPPM= 7 A
目标应用
Portable electronics
Computers and peripherals
Audio and video equipment
Communication systems
