PESD5V5V1BCSN
图像仅供参考
请参阅产品规格
PESD5V5V1BCSN
-
商品编号:
PESD5V5V1BCSNYL
-
简述:
Extremely low clamping bidirectional ESD protection diode
-
描述:

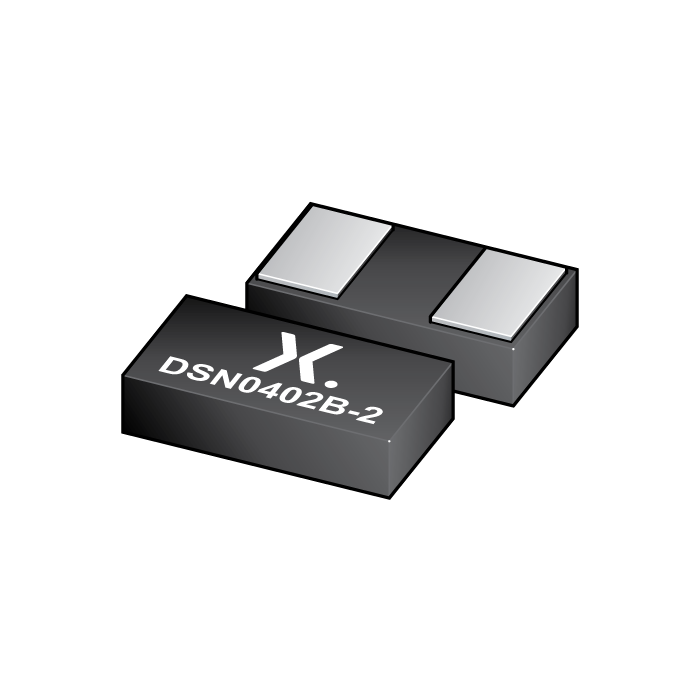

Extremely symmetrical bidirectional ElectroStatic Discharge (ESD) protection diode housed in a leadless ultra small DSN0402B-2 (SOD992B) Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
库存: 10970000
特性
Bidirectional ESD protection of one line
Very low diode capacitance Cd = 8.6 pF
Extremely low clamping to protect sensitive I/Os
Extremely low-inductance protection path to ground
ESD protection up to ±25 kV according to IEC 61000-4-2
Leadless ultra small SMD package
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
