商品编号:
PESD5V5C1UL-QYL
-
批次:
2332+
-
简述:
Q - Extremely low clamping unidirectional ESD protection diode
-
描述:

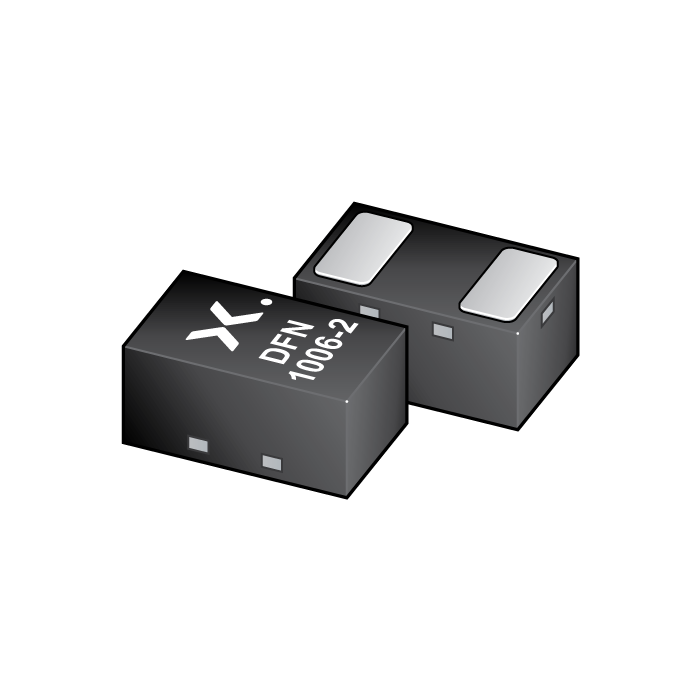

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a small leadless DFN1006-2 (SOD882-2) Surface-Mounted Device (SMD) plastic package. The combination of ultra low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed automotive data lines protection.
- 数据手册:
特性
Unidirectional ESD protection of one line
Ultra low capacitance: Cd < 0.6 pF
ESD protection starting from 15 kV (IEC 61000-4-2; ISO 10605)
Deep snap-back combined with dynamic resistance of 0.3 Ohm
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
ESD protection for in-vehicle network lines in automotive environments
Ultra high-speed data lines such as USB 3.2 or HDMI 2.0
Low-Voltage Differential Signaling (LVDS) automotive
Automotive A/V monitors, display and cameras
