商品编号:
PESD5V5C1BLYL
-
简述:
Extremely low clamping bidirectional ESD protection diode
-
描述:

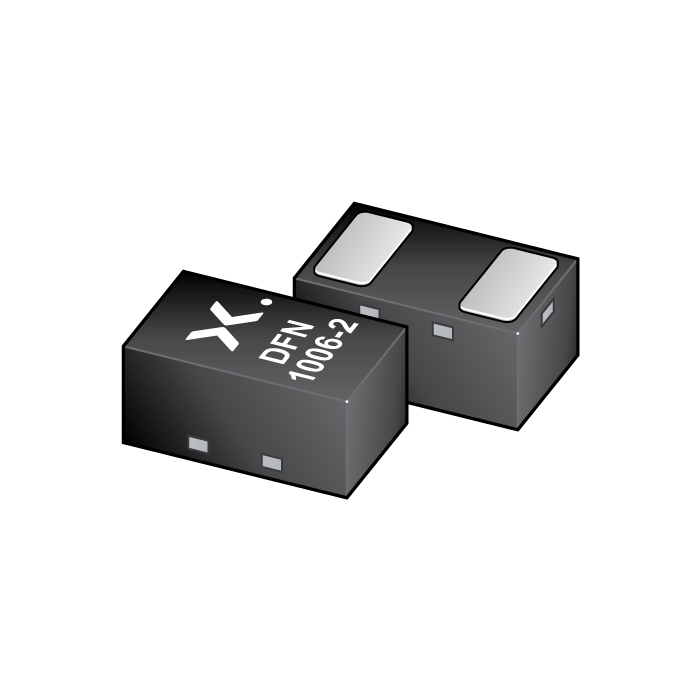

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a small leadless DFN1006-2 (SOD882-2) Surface-Mounted Device (SMD) plastic package. The combination of ultra low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data lines protection.
- 数据手册:
特性
Bidirectional ESD protection of one line
Ultra low capacitance: Cd < 0.3 pF
ESD protection up to 15 kV (IEC 61000-4-2)
Deep snap-back combined with dynamic resistance of 0.35 Ohm
IEC 61000-4-5 (surge): IPP = 8.8 A peak pulse (average measured)
Extremely low clamping voltage to protect sensitive I/Os
目标应用
Ultra high-speed data lines such as USB 3.2 or HDMI 2.0
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
