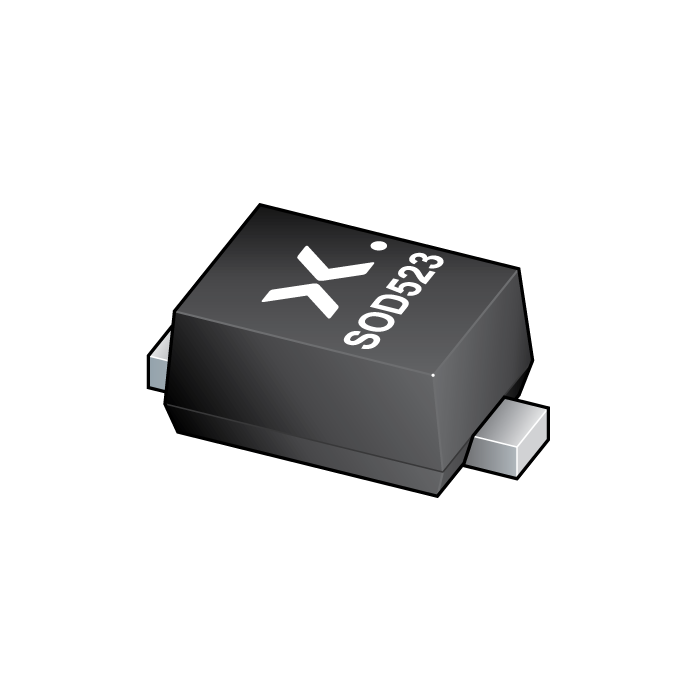

图像仅供参考
请参阅产品规格
-
商品编号:
PESD5V0X1UB,135
-
批次:
2351+
-
简述:
Ultra low capacitance unidirectional ESD protection diode
-
描述:
Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
The combination of extremely low capacitance and ultra low clamping voltage makes the device ideal for high-speed data line protection applications.
- 数据手册:
特性
ESD protection of one line
Ultra low diode capacitance Cd = 0.95 pF
Ultra low clamping voltage: VCL = 8 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 8 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 1.5 A
AEC-Q101 qualified
目标应用
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
10/100/1000 Mbit/s Ethernet
Communication systems
Portable electronics
Subscriber Identity Module (SIM) card protection
USB, High-Definition Multimedia Interface (HDMI), FireWire
High-speed data lines
