商品编号:
PESD5V0X1UALD,315
-
简述:
Ultra low capacitance unidirectional ESD protection diode
-
描述:

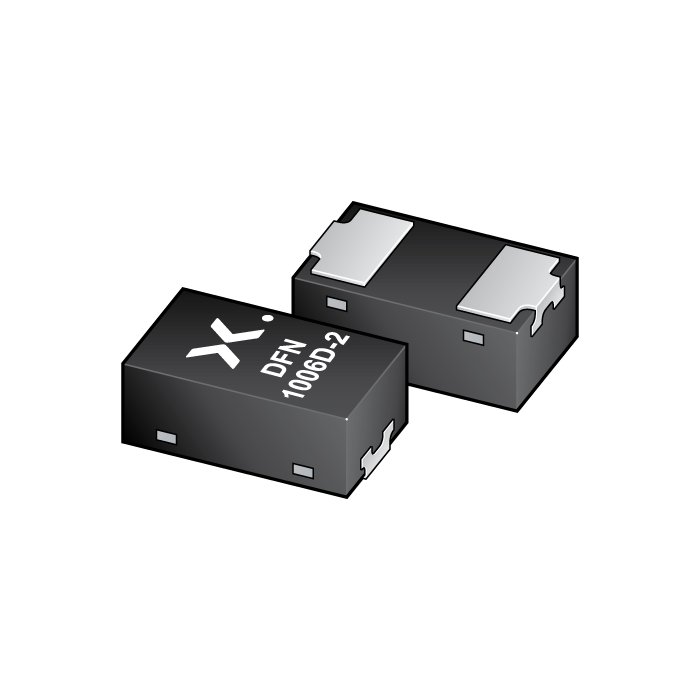

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- 数据手册:
特性
ESD protection of one line
ESD protection up to 15 kV
Ultra low diode capacitance Cd = 1.55 pF
IEC 61000-4-2; level 4 (ESD)
Ultra small SMD plastic package
Low clamping voltage: VCL = 9 V
Solderable side pads
IEC 61000-4-5 (surge); IPP = 2 A
Package height typ. 0.37 mm
AEC-Q101 qualified
Ultra low leakage current: IRM = 1 nA
目标应用
Computers and peripherals
Portable electronics
Audio and video equipment
Subscriber Identity Module (SIM) card protection
Cellular handsets and accessories
USB, High-Definition Multimedia Interface (HDMI), FireWire
10/100/1000 Mbit/s Ethernet
High-speed data lines
Communication systems
