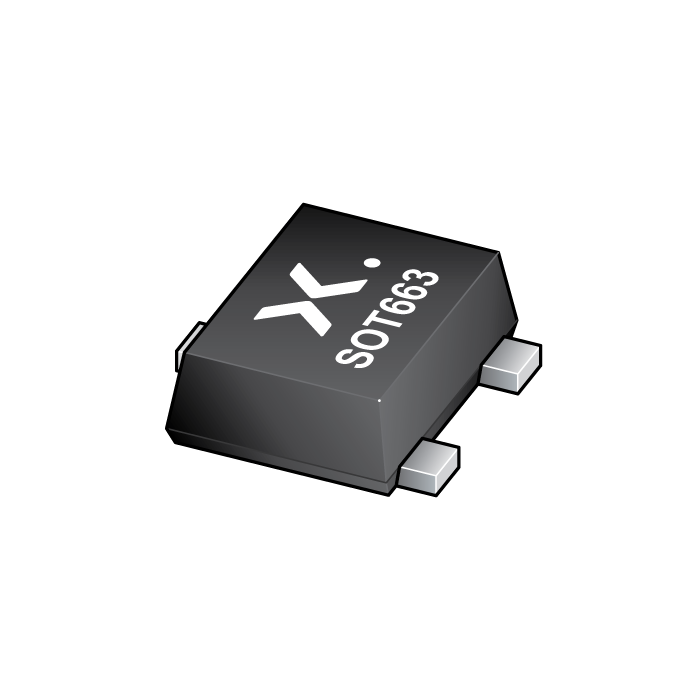

PESD5V0X1BQ
图像仅供参考
请参阅产品规格
PESD5V0X1BQ
-
商品编号:
PESD5V0X1BQ,115
-
简述:
Ultra low capacitance bidirectional ESD protection diodes
-
描述:
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diodes in an ultra small and flat lead SOT666 Surface-Mounted Device (SMD) plastic package, designed to protect one signal line from the damage caused by ESD and other transients.
The devices may also be used for unidirectional ESD protection of up to two signal lines.
- 数据手册:
库存: 0
特性
Bidirectional ESD protection of one line
ESD protection up to 9 kV
Unidirectional ESD protection of up to two lines
IEC 61000-4-2; level 4 (ESD)
Ultra low diode capacitance: Cd = 0.9 pF
Very low leakage current: IRM = 1 nA
目标应用
USB interfaces
Antenna protection
Computers, peripherals
Cellular handsets and accessories
Portable electronics
Communication systems
Audio and video equipment
High-speed data lines
