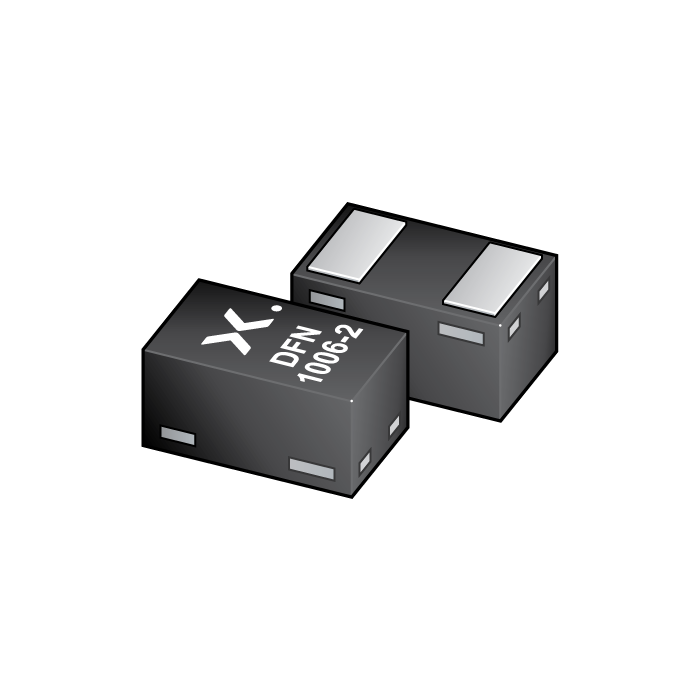

图像仅供参考
请参阅产品规格
-
商品编号:
PESD5V0X1BCL-QYL
-
简述:
Q - Extremely low capacitance bidirectional ESD protection diode
-
描述:
Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 (DFN1006-2) Surface-Mounted Device (SMD) plastic package, designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection.
- 数据手册:
特性
Bidirectional ESD protection of one line
Extremely low capacitance: Cd = 0.49 pF
Low clamping voltage: VCL = 18 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 8 kV
IEC 61000-4-2; level 4 (ESD)
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Computers and peripherals
Audio and video equipment
Cellular handsets and accessories
10/100/1000 Mbit/s Ethernet
USB, High-Definition Multimedia Interface (HDMI), FireWire
Portable electronics
SIM card protection
High-speed data lines
Communication systems
