商品编号:
PESD5V0X1BCAL-QYL
-
简述:
Q - Extremely low capacitance bidirectional ESD protection diode
-
描述:

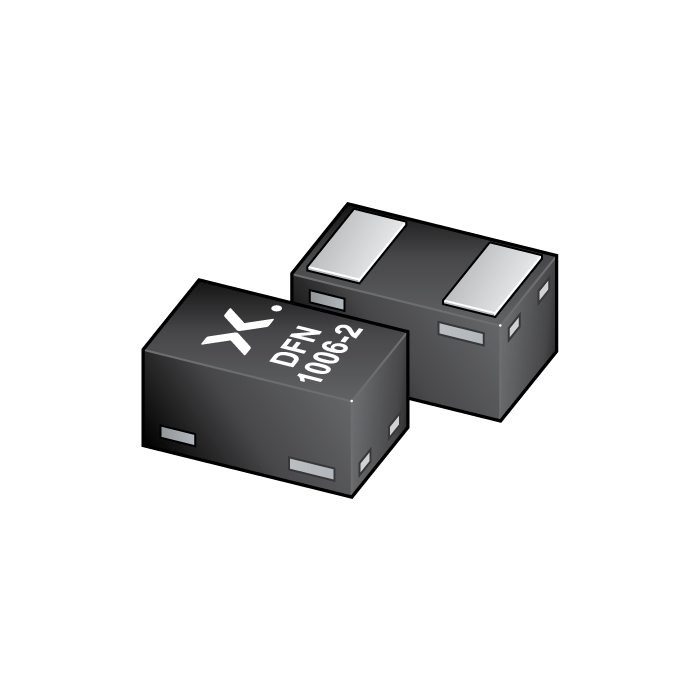

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients. The combination of extremely low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data line protection.
- 数据手册:
特性
Bidirectional ESD protection of one line
Extremely low capacitance: Cd = 0.85 pF
Low clamping voltage: VCL = 17 V
Ultra low leakage current: IRM = 1 nA
ESD protection up to 15 kV
IEC 61000-4-2; level 4 (ESD)
Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
Computers and peripherals
Audio and video equipment
10/100/1000 Mbit/s Ethernet
Communication systems
Portable electronics
SIM card protection
USB, High-Definition Multimedia Interface (HDMI), FireWire
