PESD5V0U2BM
图像仅供参考
请参阅产品规格
PESD5V0U2BM
-
商品编号:
PESD5V0U2BM-QYL
-
简述:
Q - Ultra low capacitance bidirectional double ESD protection array
-
描述:

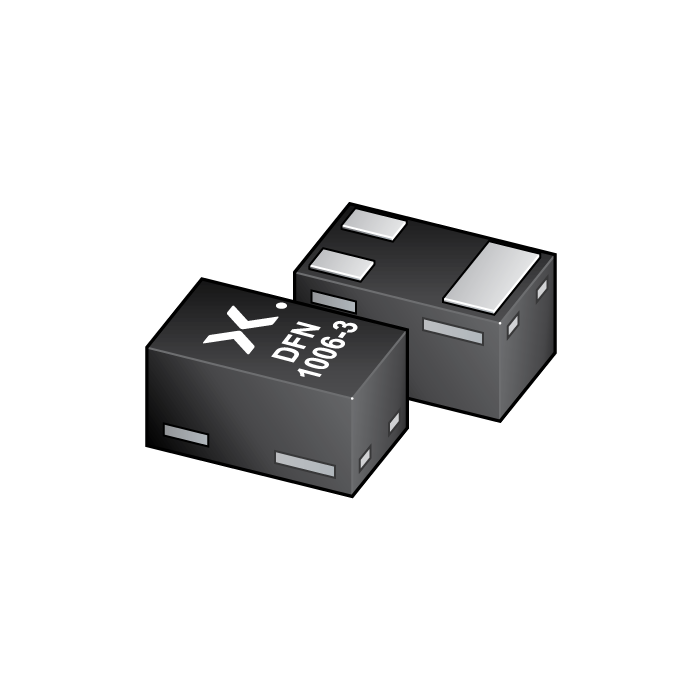

Ultra low capacitance bidirectional double ElectroStatic Discharge (ESD) protection diode array in a SOT883 leadless ultra small Surface-Mounted Device (SMD) plastic package, designed to protect up to two signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
- Bidirectional ESD protection of up to two lines
- Ultra low diode capacitance: Cd = 2.9 pF
- Ultra low leakage current: IRM = 5 nA
- ESD protection up to 10 kV
- IEC 61000-4-2; level 4 (ESD)
- Qualified according to AEC-Q101 and recommended for use in automotive applications
目标应用
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- 10/100/1000 Mbit/s Ethernet
- Communication systems
- Portable electronics
- SIM card protection
- High-speed data lines
数据手册
