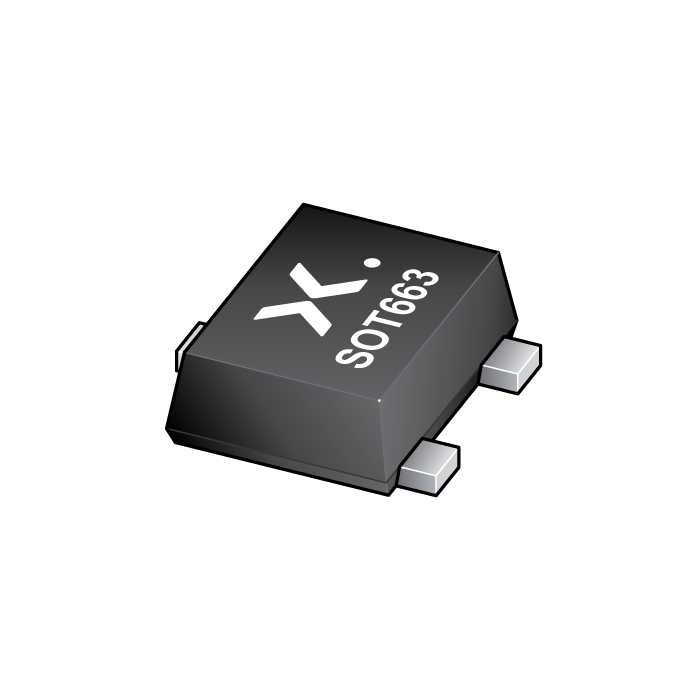

Double ESD protection diodes in SOT663 package@en
图像仅供参考
请参阅产品规格
Double ESD protection diodes in SOT663 package@en
-
商品编号:
PESD5V0S2UQ,115
-
批次:
2345+
-
简述:
us
-
描述:
Unidirectional double ElectroStatic Discharge (ESD) protection diode in a SOT663 ultra small and flat lead Surface-Mounted Device (SMD) plastic package designed to protect up to two signal lines from the damage caused by ESD and other transients.
- 数据手册:
库存: 0
特性
Unidirectional ESD protection of up to two lines
Max. peak pulse power: PPPM = 150 W at tp = 8/20 μs
Low clamping voltage: VCL = 20 V at IPPM = 15 A
Low reverse leakage current: IRM < 1 nA
ESD protection up to 30 kV
IEC 61000-4-2; level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 15 A at tp = 8/20 μs
目标应用
Computers and peripherals
Audio and video equipment
Communication systems
High-speed data lines
Parallel ports
