PESD5V0S1BSF

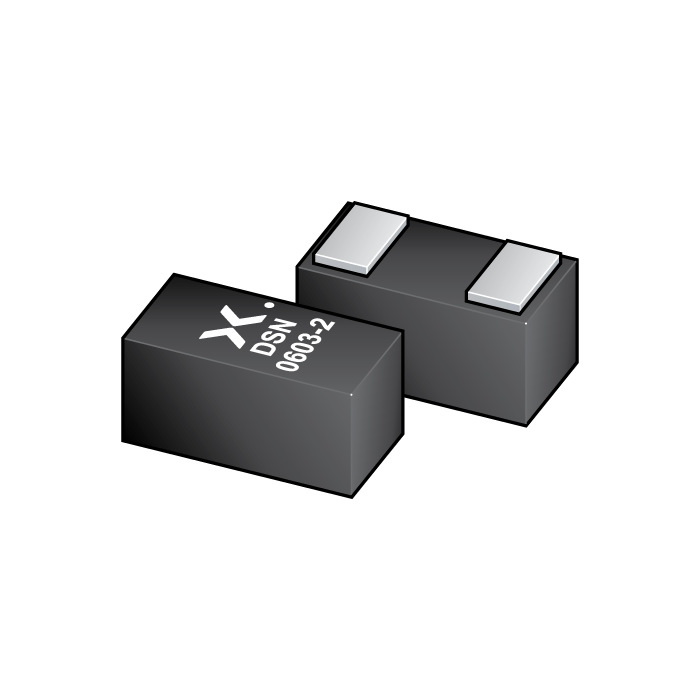

图像仅供参考
请参阅产品规格
PESD5V0S1BSF
-
商品编号:
PESD5V0S1BSF,315
-
简述:
Ultra low profile bidirectional low capacitance ESD protection diode
-
描述:
Low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a SOD962 leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
- 数据手册:
库存: 155385000
特性
Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
Bidirectional ESD protection of one line
Low diode capacitance Cd = 35 pF
ESD protection up to ±30 kV according IEC 61000-4-2
Ultra small SMD package
Symmetrical breakdown voltage
目标应用
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
